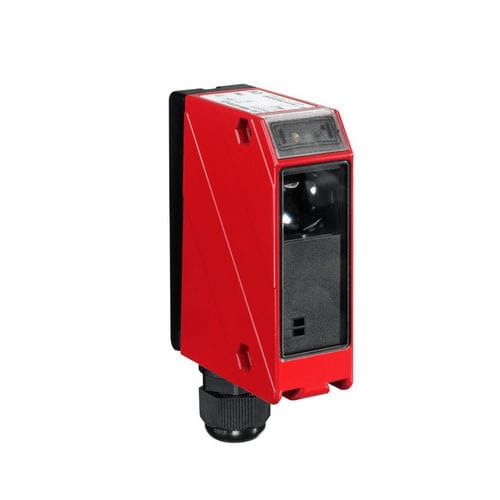

Through-beam photoelectric sensor LSE 96M/R-3310-25

rectangulardigitalmetal

Operating principle - Throughbeam principle Device type - Receiver Operating range - Guaranteed operating range Operating range limit - Typical operating range Supply voltage UB - 20 ... 230 V, AC/DC Residual ripple - 0 ... 15 %, From UB Number of digital switching outputs - 2 Piece(s) Switching element - Relay, NC contact/NO contact Switching principle - Light switching Switching element - Relay Switching principle - Dark switching Switching frequency - 20 Hz Type of connection - Terminal No. of pins - 5 -pin Dimension (W x H x L) - 30 mm x 90 mm x 70 mm Housing material - Metal Metal housing - Zinc Lens cover material - Glass Net weight - 380 g Compatibility of materials - ECOLAB Note - Housing part used contains perfluorobutanesulfonic acid (PFBS) Type of display - LED Operational controls - 270° potentiometer Ambient temperature, operation - -40 ... 55 °C Degree of protection - IP 67 Protection class - II Approvals - c UL US Standards applied - IEC 60947-5-2
