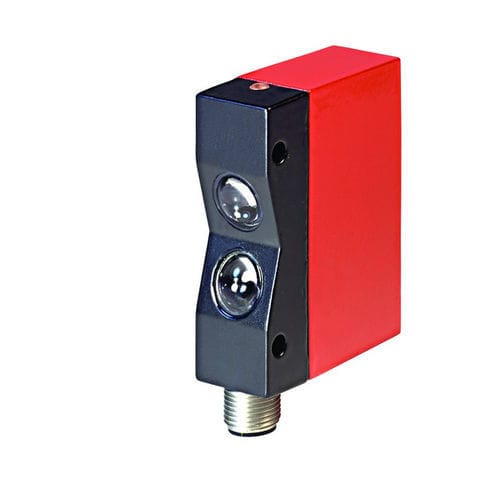

Diffuse photoelectric sensor RK 93/4-60 L
rectangularLEDdigital

Diffuse photoelectric sensor - RK 93/4-60 L - Leuze electronic GmbH + Co. KG - rectangular / LED / digital
Diffuse photoelectric sensor - RK 93/4-60 L - Leuze electronic GmbH + Co. KG - rectangular / LED / digital
Add to favorites
Compare this product

Characteristics

Sensing mode
diffuse
Housing
rectangular
Type of beam
LED
Other characteristics
metal, digital
Maximum range

Max.: 0.1 m
(0'03" )

Min.: 0 m
(0'00" )

Description

Energetic diffuse sensor Operating principle - Diffuse reflection principle Special version - V-optics Operating range - Guaranteed operating range Operating range limit - Typical operating range Light source - LED, Infrared Type of light spot geometry - Round Supply voltage UB - 10 ... 30 V, DC Number of digital switching outputs - 1 Piece(s) Switching element - Transistor, PNP Switching principle - Light switching Switching frequency - 250 Hz Type of connection - Connector Thread size - M12 Material - Metal No. of pins - 4 -pin Dimension (W x H x L) - 20 mm x 60 mm x 44 mm Housing material - Metal Metal housing - Diecast zinc Lens cover material - Glass Net weight - 170 g Ambient temperature, operation - -20 ... 60 °C Degree of protection - IP 65 Protection class - III Approvals - c UL US Standards applied - EN 60947-5-2 (German version)
