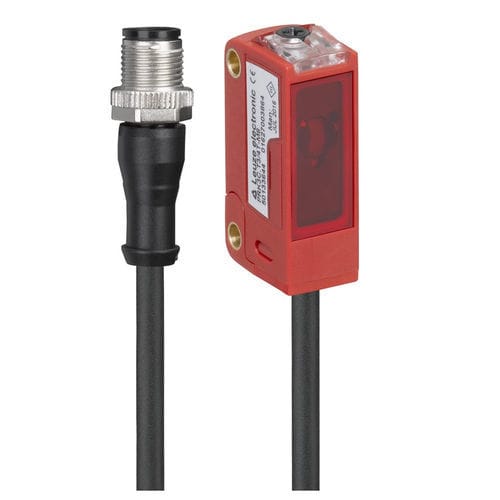

Polarized retroreflective photoelectric sensor PRK3C.BA3/4T-200-M12

rectangularLEDdigital

Operating principle - Reflection principle Special version - Autocollimation Teach input Operating range - Guaranteed operating range Operating range limit - Typical operating range Light source - LED, Red Wavelength - 635 nm LED group - Exempt group (in acc. with EN 62471) Protective circuit - Polarity reversal protection Short circuit protected Supply voltage UB - 10 ... 30 V, DC, Incl. residual ripple Residual ripple - 0 ... 15 %, From UB Open-circuit current - 0 ... 15 mA Number of teach inputs - 1 Piece(s) Function - Keyboard lockout Light/dark switching Sensitivity adjustment Number of digital switching outputs - 1 Piece(s) Switching element - Transistor, PNP Switching principle - Light switching Switching frequency - 1,500 Hz Response time - 0.33 ms Readiness delay - 300 ms Function - Signal IN Signal OUT Voltage supply Type of connection - Cable with connector Cable length - 200 mm Sheathing material - PUR Cable color - Black Wire cross section - 0.2 mm² Thread size - M12 Type - Male Material - Metal No. of pins - 4 -pin Encoding - A-coded Dimension (W x H x L) - 11.4 mm x 34.2 mm x 18.3 mm Housing material - Plastic Plastic housing - PC-ABS Lens cover material - Plastic / PMMA Net weight - 20 g Housing color - Red Type of fastening - Two M3 threaded sleeves Via optional mounting device Compatibility of materials - ECOLAB
