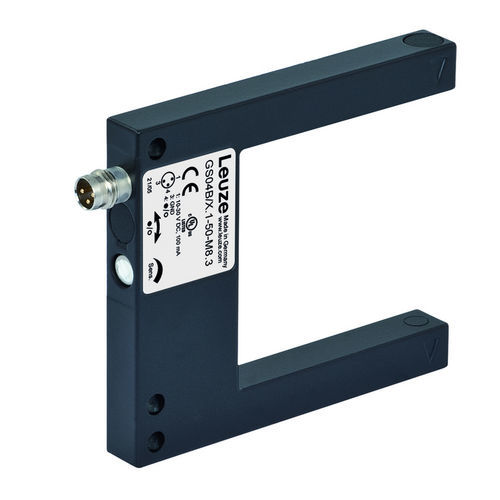

Ultrasonic fork sensor GS04B/P.1-50-M8.3

Principle of physics - Optical Application - Detection of small parts MTTF - 700.42 years Light source - LED, Red Wavelength - 660 nm Transmitted-signal shape - Pulsed Repeatability - 0.02 mm Minimum object diameter - 0.3 mm Protective circuit - Polarity reversal protection Short circuit protected Supply voltage UB - 10 ... 30 V, DC Residual ripple - 0 ... 15 %, From UB Open-circuit current - 0 ... 30 mA Switching hysteresis - 100 µm Number of digital switching outputs - 1 Piece(s) Type - Digital switching output Voltage type - DC Switching current, max. - 100 mA Switching voltage - high: ≥(UB-2V) low: ≤ 2 V Switching element - Transistor, PNP Switching principle - Light/dark switchable Switching frequency - 5,000 Hz Response time - 0.1 ms Readiness delay - 150 ms Number of connections - 1 Piece(s) Function - Signal OUT Voltage supply Type of connection - Connector Thread size - M8 Type - Male Material - Metal No. of pins - 3 -pin Design - Fork Mouth width - 50 mm Mouth depth - 55 mm Dimension (W x H x L) - 10 mm x 70 mm x 80 mm Housing material - Metal Metal housing - Diecast zinc Lens cover material - Glass Net weight - 96 g Housing color - Black, RAL 9005 Type of fastening - Through-hole mounting
