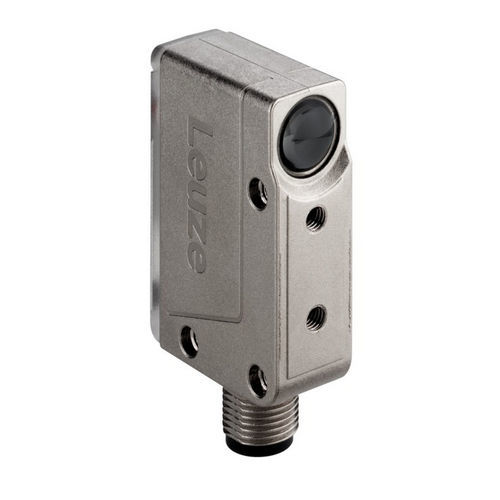

Polarized retroreflective photoelectric sensor PRK18B.XTT3/4P-M12

rectangularLEDdigital

Operating principle - Reflection principle Application - Detection of highly transparent bottles Detection of highly transparent films and glass panes Special version - Autocollimation Tracking function Operating range - 0 ... 3 m Operating range - Guaranteed operating range Operating range limit - 0 ... 3.6 m Operating range limit - Typical operating range Light source - LED, Red Wavelength - 620 nm LED group - 1 Shift angle - Optical axis aligned, <±0.25° Protective circuit - Polarity reversal protection Short circuit protected Supply voltage UB - 10 ... 30 V, DC Residual ripple - 0 ... 15 %, From UB Open-circuit current - 0 ... 18 mA Number of digital switching outputs - 2 Piece(s) Switching element - Transistor, PNP Switching principle - Light switching Switching element - Transistor, PNP Switching principle - Dark switching Switching frequency - 1,500 Hz Response time - 0.333 ms Readiness delay - 300 ms Function - Signal OUT Voltage supply Type of connection - Connector Thread size - M12 Type - Male Material - Metal No. of pins - 4 -pin Encoding - A-coded Dimension (W x H x L) - 15 mm x 47 mm x 32.5 mm Housing material - Metal Metal housing - Diecast zinc Lens cover material - Glass Net weight - 60 g Housing color - Silver Type of fastening - Front mounting with thread Through-hole mounting Via optional mounting device Compatibility of materials - ECOLAB Type of display - LED Operational controls - Teach button
