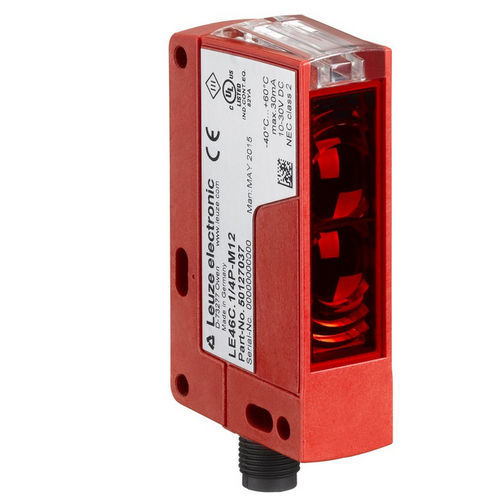

Through-beam photoelectric sensor LE46C/4P-M12

rectangular

Operating principle - Throughbeam principle Device type - Receiver Operating range - Guaranteed operating range Operating range limit - Typical operating range Protective circuit - Polarity reversal protection Short circuit protected Transient protection Supply voltage UB - 10 ... 30 V, DC, Incl. residual ripple Residual ripple - 0 ... 15 %, From UB Open-circuit current - 0 ... 20 mA Number of digital switching outputs - 2 Piece(s) Switching element - Transistor, PNP Switching principle - Light switching Switching element - Transistor, PNP Switching principle - Dark switching Switching frequency - 500 Hz Response time - 1 ms Readiness delay - 300 ms Function - Signal OUT Voltage supply Type of connection - Connector Thread size - M12 Type - Male Material - Plastic No. of pins - 4 -pin Encoding - A-coded Dimension (W x H x L) - 20.5 mm x 76.3 mm x 44 mm Housing material - Plastic Plastic housing - PC-PBT Lens cover material - Plastic / PMMA Net weight - 60 g Housing color - Red Type of fastening - Through-hole mounting Via optional mounting device Compatibility of materials - ECOLAB Type of display - LED
