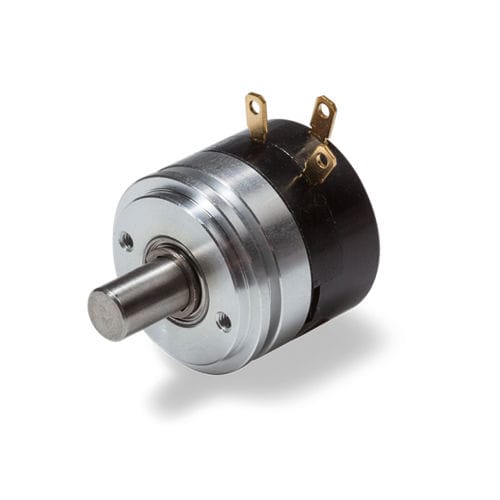

Conductive plastic potentiometer MPS20

single-turnmanualanalog

Precision potentiometer with 22 mm servo flange housing and radial connections for precise and reliable control tasks Installation depth 18 mm Electrical angle of rotation 320° ±5° Total resistance 0.5 kOhm to 100 kOhm Linearity ±1% (option: ±0.5%) Lifetime over 10 million revolutions Temperature range -55 °C to +105 °C Precise potentiometer with 2 x ball bearings for space-saving control solutions The MPS20 is a durable precision potentiometer with a 22 mm servo flange housing and radial connections that impresses with its service life of over 10 million revolutions. It is ideal for control and regulation tasks where precision and reliability are paramount. Thanks to conductive plastic technology, the MPS20 offers a high linearity of ±1% (optionally ±0.5%) and an electrical angle of rotation of 320° ±5°. With an installation depth of just 18 mm, it is ideal for compact control applications in a wide range of industries. Options: Resistance values: 0.5 kOhm to 100 kOhm Resistance tolerance: ±15% (option: ±10%) Linearity: ±1% (option: ±0.5%) Center tap: Enables voltage or current tapping at a defined point on the resistor track, allowing for additional measurement outputs Shaft adaptations: Various geometries and lengths available Screwdriver slot: For simple manual adjustments
