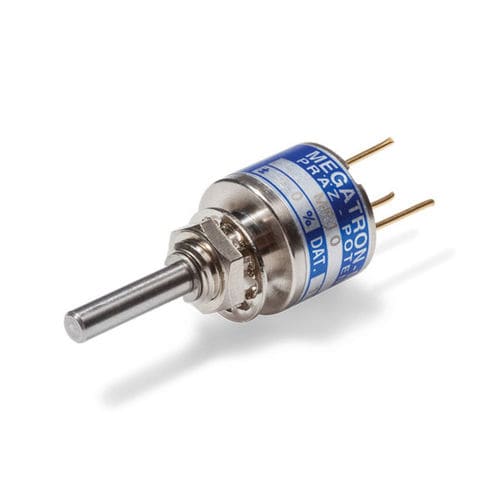

Single-turn potentiometer MP10/11

manualanalogfor industrial applications

Robust conductive plastic potentiometer with 13 mm steel housing for applications with limited space The MP10/11 series conductive plastic potentiometers are specially designed for applications where space is at a premium. With a robust steel housing and a service life of 5 million revolutions, they offer an ideal combination of stability, compactness and reliability. The MP10 version has a mechanical rotation angle of 360° without end stop, while the MP11 version is equipped with a mechanical end stop at 310°. The latter is particularly suitable for manual set point settings. Particularly noteworthy is the exceptional temperature range of -55 °C to +105 °C, which, in combination with the robust and miniaturized design, enables many possible applications in demanding environments. Options: Linearity: ±2% (optional ±1%) Resistance tolerance: 500 Ohm to 100 kOhm Shaft adaptations: Various geometries and lengths Center tap: Enables voltage or current to be tapped at a defined point on the resistor track. Rear shaft: For mechanical connection to synchronized mechanisms on the rear of the potentiometer.
