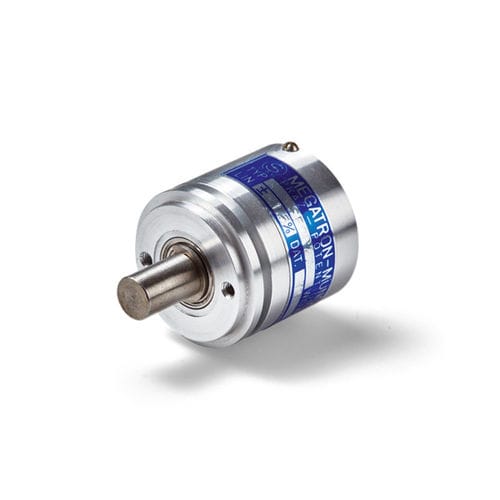

Conductive plastic potentiometer SFCP22

rotarymanualanalog

Accurate and compact precision potentiometer for demanding applications The SFCP22 is a high-precision conductive plastic potentiometer with a robust 22 mm metal housing and an exceptional service life of over 20 million revolutions. It is suitable for applications that require maximum reliability and stability. The combination of axial connections and a ball-bearing shaft makes the SFCP22 versatile. With a high precision of ±0.75% linearity (optional ±0.5%) and a wide temperature range from -55 °C to +105 °C, the SFCP22 is ideal for demanding applications. Options: Resistance values: 0.5 kOhm to 100 kOhm Linearity: ±0.75% (option: ±0.5%) Rear shaft: Additional mechanical connection options Centre tap: Enables voltage or current tapping at a defined point on the resistor track, this enables the additional output of measurements Shaft adaptations: Various geometries and lengths available Screwdriver slot: For simple manual adjustments
