conductive plastic potentiometer / single-turn / manual / analog

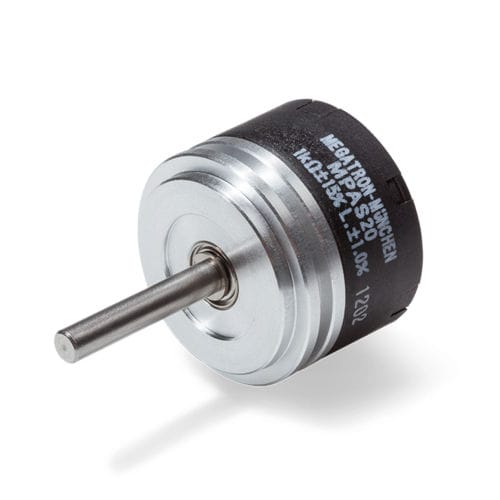

MPAS20

Add to MyDirectIndustry favorites
Compare this product
conductive plastic potentiometer / single-turn / manual / analog conductive plastic potentiometer / single-turn / manual / analog - MPAS20
{{requestButtons}}

Characteristics

  • Configuration:

    single-turn

  • Operation:

    manual

  • Technology:

    analog

  • Other characteristics:

    conductive plastic, precision, control

Description

The MPAS20/21 potentiometer series in 22 mm housing with precision ball bearings and servo flanges are suitable for applications in which a highly durable sensor is required, that can also be installed precisely.

The precision potentiometer series MPAS20/21 (MPAS21 with mechanical end stop) with ball bearings and conductive plastic technology can also be comfortably used in controlled systems. As passive components, no dead times are caused by signal delays. Furthermore the signal is continuously available immediately after being switched on. The main application is the actual value recording in closed loop position control circuits. For precise installation the sensors are equipped with servo flanges (servo clamps are included)

High lifespan and accuracy
Servo flange for precise installation
2 precision ball bearings
With or without mechanical end stop (320°/360°)

Adaptations / Options:

Improved resistance tolerance
Front shaft adaptation
