Multi-turn potentiometer AL20

manualwire-woundfor industrial applications

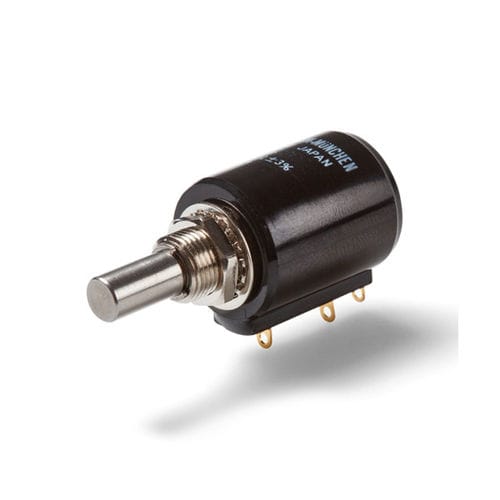

Robust multiturn potentiometer for precise control tasks The AL20 series combines a robust and precise design with versatility. With a Ø20 mm plastic housing and a rotary movement of up to 10 turns, it offers a reliable solution for applications that require high precision and stability. Thanks to a seamlessly moulded housing and two plain bearings, the AL20 series offers exceptional stability that is not available with conventional potentiometers with only one bearing. With a service life of up to 2 million revolutions, an optional slipping clutch, an available 3-turn version, and optional limit switches, the potentiometer offers exceptional versatility. Optional limit switches that are active within the electrically effective angle of rotation (360° × n) can be configured for additional control tasks. Available types are: CW+CCW for both directions of rotation, CCW for anti-clockwise and CW for clockwise. The AL20's design, which omits a centering collar, allows for flexible positioning of the potentiometer. This feature offers advantages in applications with limited installation space and facilitates mechanical integration for specific project requirements. Options: Multiturn: Available in 5, 10 (3 turns on request) Tandem version: For redundant or galvanically isolated signal output Center tap: Enables voltage or current tapping at a defined point on the resistor track and extends the functionality Shaft adaptations: Various geometries and lengths available Slipping clutch: Available on request Limit switch: Available on request for additional control functions Linearity: ±0.25 % (option: ±0.10 % for ≥ 5 kOhm at 10 turns) Resistance values: 0.1 kOhm to 150 kOhm
