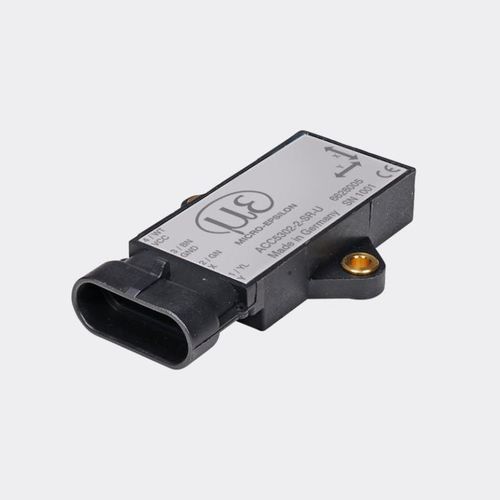

Single-axis accelerometer ACC5301-2-SA-U

1-axisvoltage outputrugged

Short description
1-axis compact accelerometer with voltage output and measurement range ±2 g. Suitable also for mobile machinery.

Key facts

• Custom variants available
• Space-saving, robust plastic housing
• Easy connection via AMP connector
• High shock resistance

Description

• Ideal for series integration: The ACC530x accelerometer is suitable for both static and dynamic acceleration measurements. The sensor family offers single- and two-axis options. Its compact format and cost-effective configuration make it suitable for high-volume production applications.
• Applications: Detection of critical accelerations and vibrations. High shock resistance, high protection rating and quick installation via AMP connector make the ACC530x predestined for series use, e.g., in mobile working machines.

Pricing
QTY | PRICE
from 5 | 257,00 €
from 10 | 180,00 €
from 25 | 141,00 €
from 50 | 117,84 €

Documents
Installation guide ACC530x.pdf

Technical specifications

• Model: ACC5301-2-SA-U
• Article number / variants: (6626003) BG2168.2 (H6210.01-5.01ME 1U-T0) | 9512.03-5.52ME
• Axes: 1-axis (2-axis variants available in the product family)
• Measurement range: ±2 g
• Output: voltage output
• Connection type: AMP connector
• Housing: space-saving robust plastic housing
• Mechanical properties: high shock resistance
• Typical application: series integration, mobile working machines, vibration and acceleration measurement
