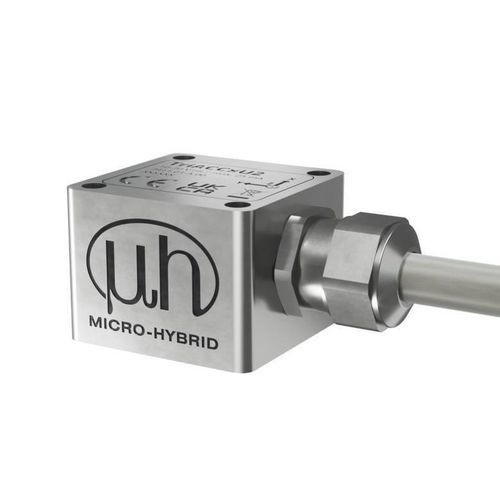

3-axis accelerometer TriACCxU10

MEMSshockcurrent output

Overview
3-axis acceleration sensor with voltage output and ± 10 g measurement range, in stainless steel housing, type-tested to DIN EN 50155 for rail applications.

Key features

• Triaxial MEMS acceleration sensor in stainless steel housing
• Measurement range: ± 10 g
• Compact dimensions: 20 × 27 × 27 mm
• Operating temperature: -40 … +85 °C
• Type-tested to DIN EN 50155 (rail standard)
• Voltage output (optional 4-20 mA current output available)

Product description

• Compact form factor allows installation in confined spaces while providing full triaxial measurement capability.
• Simultaneous measurement on three axes for comprehensive condition monitoring and vibration analysis.
• Rail-certified design ensures reliable operation under the environmental and electrical conditions defined by DIN EN 50155.
• Selectable measurement ranges adapt the sensor to low-vibration monitoring or high-shock events.
• Voltage output simplifies integration with existing automation and acquisition systems; a 4-20 mA option is available for loop-powered applications.
• IP67 cable version is available for protection against dust and temporary immersion in demanding environments.
• Wide temperature and supply range: reliable operation from -40 °C to +85 °C and 9 … 30 V DC supply.
• Provides a defined static signal at rest (0 Hz), enabling direct measurement of static acceleration such as gravity.

Applications

• Rail technology: vibration, wheelset and carriage monitoring, impact detection; type-tested according to DIN EN 50155.
• Industrial machinery: machine condition monitoring, vibration measurement and shock detection.
• Harsh environments: with IP67 cable option suitable for wet, dirty or washdown conditions.

Pricing tiers
from 1 — 462,00 €
from 5 — 376,00 €
from 10 — 363,00 €
from 25 — 324,00 €
from 50 — 284,50 €

Characteristics / Specifications

• Model: TriACCxU10 (manufacturer designation on product page)
• Part number / article code: 7411.04-A.00
• Sensor axes: 3-axis (triaxial)
• Technology: MEMS
• Measurement range: ± 10 g
• Output signal: voltage output (option: 4-20 mA)
• Housing: stainless steel
• Dimensions: 20 × 27 × 27 mm
• Operating temperature: -40 … +85 °C
• Supply voltage: 9 … 30 V DC
• Protection / option: IP67 (cable version available)
• Certification: type-tested to DIN EN 50155 (railcompatible)
• Behavior at rest: defined static output signal (0 Hz detectable)
