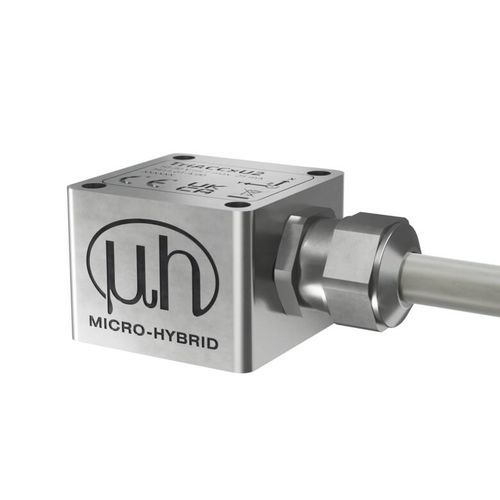

Triaxial accelerometer TriACCxI2

MEMScompactfor railway applications

The TriACCX is a compact, robust, and versatile triaxial accelerometer that meets the highest requirements in industrial and railway applications. Compact size: Measuring just 20 × 27 × 27 mm, the sensor can be easily integrated even in confined spaces. Triaxial measurement: Measures acceleration along all three spatial axes simultaneously - ideal for comprehensive condition monitoring. Certified for railway applications: Compliance with DIN EN 50155 ensures reliable operation even under harsh operating conditions in the railway sector. Flexible measuring ranges: A wide selection of acceleration ranges allows precise adaptation to various application scenarios - from low vibration to strong shocks. Current output: easy integration into existing automation solutions. Robust design: The optional IP67 cable version offers protection against dust and temporary immersion - ideal for demanding environments. Wide temperature and voltage range: Operates reliably from -40°C to +85°C and with supply voltages from 9 to 30 V DC. Static signal at rest: The sensor delivers a defined output signal even at 0 Hz, enabling the direct measurement of static acceleration values ​​(e.g., gravity). The TriACCX is designed for use in technically demanding applications requiring precise acceleration measurement, robustness, and reliability under varying environmental conditions. Its triaxial MEMS technology, railway-compatible design according to DIN EN 50155, and the choice between voltage output and 4-20 mA current output open up a wide range of application possibilities.
