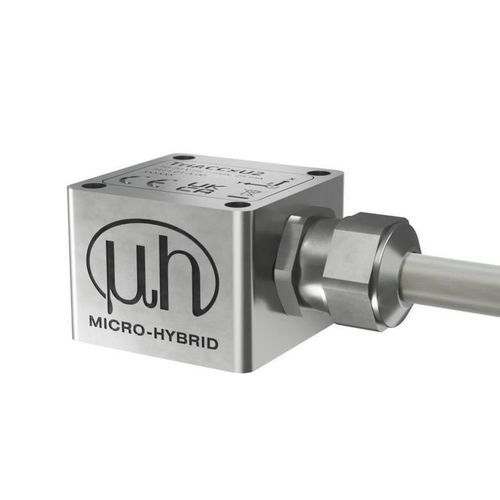

3-axis accelerometer TriACCxU2

triaxialMEMSindustrial

Short description
3-axis acceleration sensor with voltage output and ±2 g measurement range

Key facts

• Triaxial MEMS accelerometer with robust stainless-steel housing
• Measurement range: ±2 g
• Dimensions: 20 × 27 × 27 mm
• Operating temperature: −40 to +85 °C
• Type-tested to railway standard DIN EN 50155
• Voltage output (standard), optional 4–20 mA

Description
The TriACCxU2 is a compact, robust triaxial accelerometer designed for industrial and railway condition monitoring where reliable electrical outputs and a small footprint are required.

• Compact size: 20 × 27 × 27 mm allows integration in confined installations.
• Triaxial measurement: Simultaneous sensing on X, Y, Z axes for comprehensive vibration and shock analysis.
• Railway certification: Type-tested to DIN EN 50155 for dependable operation in rail applications.
• Flexible ranges: Variant with ±2 g measurement range; other ranges available for low-vibration or high-shock scenarios.
• Voltage output: Standard voltage output for straightforward integration into automation systems; 4–20 mA optional.
• Robust design: Stainless-steel housing; optional IP67 cable version for dust and temporary immersion protection.
• Wide operating conditions: Operates from −40 °C to +85 °C with supply 9–30 V DC.
• Static measurement: Defined output at 0 Hz enables direct measurement of static acceleration (e.g., gravity).

Additional features
Alternative output options (voltage or 4–20 mA) and an IP67 cable variant expand integration possibilities across industrial and transport systems. The sensor provides a stable static signal for inclination or gravity measurement.

Applications

• Railway: Vibration and impact monitoring on axles and car bodies; early detection of anomalies in compliance with DIN EN 50155.
• Industrial: Machine and plant monitoring, vibration analysis, condition monitoring where standardized electrical outputs are required.
• Harsh environments: IP67 cable version suitable for wet, dirty, or cleaning-intensive environments.

Bulk prices
starting from 1: €449.00
starting from 5: €365.00
starting from 10: €352.00
starting from 25: €313.00
starting from 50: €276.50

Characteristics / technical specifications

• Model: TriACCxU2
• Reference number: 7411.01-A.00
• Measurement axes: 3 (X, Y, Z)
• Measurement range (example shown): ±2 g
• Output: Voltage output (standard); optional 4–20 mA current output
• Dimensions: 20 × 27 × 27 mm
• Operating temperature: −40 to +85 °C
• Supply voltage: 9–30 V DC
• Housing: Stainless-steel housing; optional IP67 cable version
• Standards: Type-tested to DIN EN 50155 (railway)
• Static measurement capability: Defined output at 0 Hz
