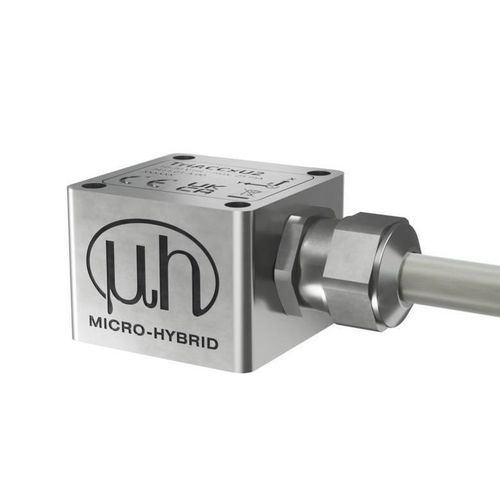

Triaxial accelerometer TriACCxI4

MEMSfor railway applicationsrugged

Description
The TriACCxI4 is a compact, robust and versatile triaxial accelerometer designed for industrial and railway applications.

• Compact size: 20 × 27 × 27 mm for integration in confined spaces.
• Triaxial measurement: Simultaneous measurement on X, Y and Z axes for comprehensive condition monitoring.
• Railway certified: Type-tested to DIN EN 50155 for reliable operation under rail conditions.
• Flexible measuring ranges: Available in multiple ranges (standard example: ±4 g) to suit low vibrations and strong shocks.
• Current output: 4-20 mA option and voltage output variants for easy integration into automation systems.
• Rugged housing: Stainless steel housing; optional IP67 cable version for protection against dust and temporary immersion.
• Wide temperature & supply range: Operating from -40 °C to +85 °C with supply 9–30 V DC.

Additional functional notes

• Static signal at rest: Defined output at 0 Hz enables direct measurement of static acceleration (e.g., gravity).
• Available with voltage or 4-20 mA current output to match industrial integration needs.

Applications

• Railway technology: Vibration and shock monitoring on axles and car bodies; enables early detection of critical conditions while complying with DIN EN 50155.
• Industrial applications: Machine and plant monitoring, vibration measurement and condition monitoring where standardized electrical outputs are required.
• Harsh environments: IP67 cable option suitable for use with moisture, dirt or cleaning processes.

Bulk prices
starting from 1 — 451,00 €
starting from 5 — 366,79 €
starting from 10 — 353,68 €
starting from 25 — 315,77 €
starting from 50 — 277,89 €

Technical characteristics / specifications

• Model: TriACCxI4
• Order code (example): 7411.08-A.00
• Sensor type: Triaxial MEMS accelerometer
• Housing: Stainless steel housing
• Measuring range: ±4 g (example); other ranges available
• Outputs: 4-20 mA current output and voltage output options
• Dimensions: 20 × 27 × 27 mm
• Operating temperature: -40 … +85 °C
• Supply voltage: 9 … 30 V DC
• Protection (optional): IP67 cable version
• Standards: Type-tested according to DIN EN 50155
• Static measurement: Defined output at 0 Hz for direct static acceleration measurement
