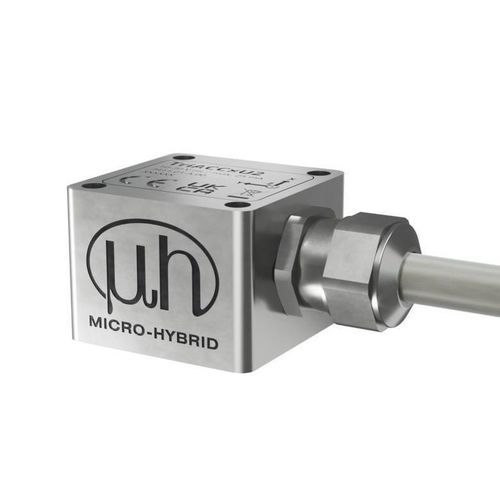

Triaxial accelerometer TriACCxI10

3-axisMEMSvoltage output

Description
The TriACCxI10 is a compact triaxial accelerometer designed for precise acceleration measurement in industrial and railway environments. Its small footprint and certified design support integration in constrained installations while meeting railway standards.

Key features

• Compact size: 20 × 27 × 27 mm for installation in confined spaces.
• Triaxial measurement: Simultaneous measurement on X, Y and Z axes for comprehensive condition monitoring.
• Railway certification: Type-tested to DIN EN 50155 for reliable operation under railway conditions.
• Measuring ranges: Configurable ranges (example variant ±10 g) to suit low-vibration to high-shock applications.
• Output options: Voltage output or 4–20 mA current output for straightforward integration into automation systems.
• Rugged design: Stainless steel housing with optional IP67 cable version for protection against dust and temporary immersion.
• Operating range: -40 °C to +85 °C, supply 9–30 V DC.

Additional description

• Static signal at rest: Defined output at 0 Hz allows direct measurement of static acceleration (e.g., gravity).
• The sensor uses triaxial MEMS technology and is engineered for applications demanding precision, repeatability and environmental robustness.
• Available with voltage or 4–20 mA current output to match existing signal processing and control architectures.

Applications

• Railway technology: Vibration and shock monitoring on axles and car bodies; enables early detection of critical conditions while complying with DIN EN 50155.
• Industrial monitoring: Machine and plant vibration measurement, condition monitoring and diagnostics where standardized outputs are required.
• Harsh environments: IP67 cable design supports use in wet, dirty or washdown conditions.

Bulk prices
starting from 1 : 464,00 €
starting from 5 : 377,26 €
starting from 10 : 363,78 €
starting from 25 : 324,80 €
starting from 50 : 285,83 €

caractéristiques / spécifications techniques

• Brand: Micro-Hybrid
• Product type: 3-axis (triaxial) accelerometer
• Technology: Triaxial MEMS accelerometer
• Measuring range: ±10 g (variant shown)
• Outputs: Voltage output or 4–20 mA current output
• Housing: Stainless steel
• Dimensions: 20 × 27 × 27 mm
• Operating temperature: -40 … +85 °C
• Supply voltage: 9 to 30 V DC
• Ingress protection: Optional IP67 cable version
• Standards: Type-tested to DIN EN 50155
• Static measurement: Defined output at rest (0 Hz)
