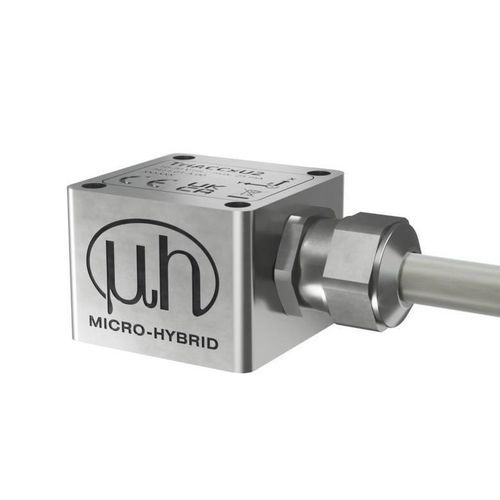

3-axis accelerometer TriACCxU20

triaxialMEMSindustrial

Product short description
The TriACCxU20 is a compact, rugged and versatile triaxial MEMS accelerometer designed to meet demanding industrial and railway applications.

Key features

• 3-axis MEMS accelerometer in a stainless steel housing
• Measurement range ± 20 g
• Dimensions: 20 × 27 × 27 mm
• Operating temperature: -40 ... +85 °C
• Type-tested to railway standard DIN EN 50155
• Voltage output (optional 4-20 mA current output)
• Static output signal at rest (captures static accelerations such as gravity)
• Optional IP67 cable version
• Supply voltage: 9 ... 30 V DC

Applications

• Railway: vibration, wheelset imbalance and shock monitoring on axles or car bodies (compliant with DIN EN 50155)
• Industrial: machine monitoring, plant condition monitoring and vibration measurement; integration via voltage or 4-20 mA outputs
• Harsh environments: IP67 cable option for resistance to moisture, dirt and cleaning processes

Volume prices
from 1 — 462.00 €
from 5 — 376.00 €
from 10 — 363.00 €
from 25 — 324.00 €
from 50 — 284.50 €

Characteristics / technical specifications

• Model: TriACCxU20 (reference on page: 7411.05-A.00)
• Product ID: 15861
• Measurement axes: 3 (triaxial)
• Technology: MEMS
• Range: ± 20 g
• Outputs: voltage output; optional 4-20 mA current output
• Supply voltage: 9 ... 30 V DC
• Dimensions: 20 × 27 × 27 mm
• Housing: stainless steel
• Ingress protection: optional IP67 cable version
• Operating temperature: -40 ... +85 °C
• Certification: type-tested to DIN EN 50155
