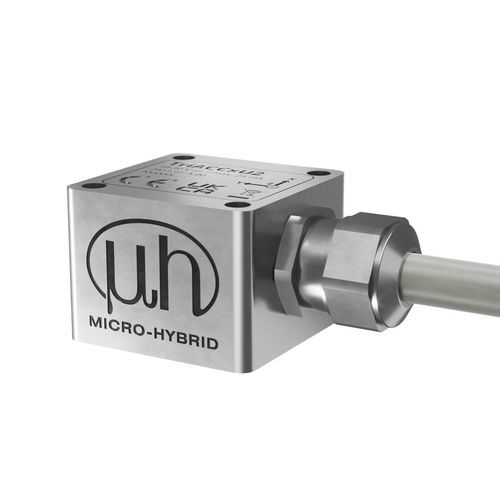

Triaxial accelerometer TriACCxU4

MEMSIP67voltage output

Short description
Triaxial MEMS acceleration sensor with voltage output, measuring range ±4 g, stainless steel housing, dimensions 20 × 27 × 27 mm. Optional 4-20 mA current output and IP67 cable version. Type-tested to DIN EN 50155 for railway use.

Key features

• Triaxial MEMS accelerometer in stainless steel housing
• Measuring range ±4 g
• Standard voltage output; optional 4-20 mA current output
• Compact dimensions: 20 × 27 × 27 mm
• Operating temperature: -40 to +85 °C
• Type-tested according to DIN EN 50155
• IP67 cable option for dust and temporary immersion

Description
The TriACCxU4 is a compact triaxial accelerometer designed for industrial and railway applications. Its MEMS sensors measure acceleration simultaneously on three axes and provide a defined static output at 0 Hz. The device operates from 9 to 30 V DC and is available with either a voltage output or an optional 4-20 mA current output. An IP67 cable version is available for environments requiring protection against dust and temporary immersion.

Applications

• Railway: monitoring vibration, oscillation and shocks on axles and car bodies (compliant with DIN EN 50155)
• Industrial: machine construction, condition monitoring, vibration measurement and system integration using standard outputs
• Harsh environments: suitable with IP67 cable version

Volume pricing
from 1 : 449.00 €
from 5 : 365.00 €
from 10 : 352.00 €
from 25 : 315.00 €
from 50 : 276.50 €

Technical specifications

• Product name: TriACCxU4
• Triaxial MEMS accelerometer
• Measuring range: ±4 g
• Output: voltage output (option: 4-20 mA current output)
• Housing: stainless steel
• Dimensions: 20 × 27 × 27 mm
• Operating temperature: -40 °C to +85 °C
• Supply voltage: 9 to 30 V DC
• Protection option: IP67 (cable version)
• Type test: DIN EN 50155 (railway)
• Static signal available at 0 Hz (measures static acceleration such as gravity)
