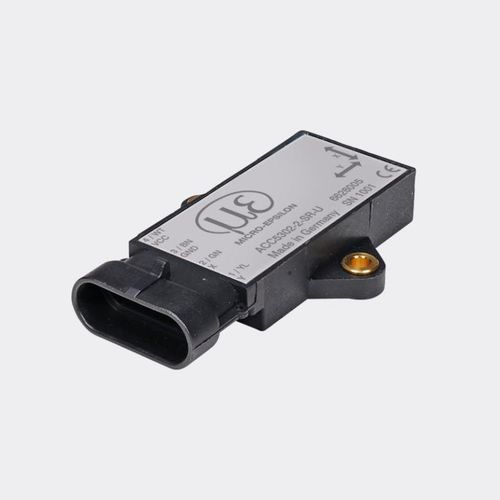

2-axis accelerometer ACC5302-2-SA-U

voltage outputcompact

Short description
The ACC530x is a 1- or 2-axis acceleration sensor with voltage output and a measurement range of ±2 g, designed for series integration in mobile machinery and high-volume applications.

Model / Article numbers
ACC5302-2-SA-U (6626005) BG2168.2 (H6210.03-5.01ME 2U-T0) | 9512.52-5.52ME

Key facts

• 1-axis or 2-axis variants
• Compact plastic housing
• Connection via AMP connector
• High shock resistance
• Customised versions available

Description

• Designed for series integration
  The ACC530x records static and dynamic accelerations. Its compact design and voltage output make it suitable for economical integration in series-produced equipment.
• Variants and outputs
  Available in single-axis and dual-axis versions with a voltage output and a measurement range of ±2 g, selectable according to application requirements.

Areas of application
The sensor is used to detect critical accelerations and vibrations reliably. Its high shock resistance, protection rating and quick installation via an AMP connector make it suitable for series use in mobile machinery and other industrial applications.

Bulk prices (starting from)
Quantity | Price (EUR)
1 | 174.00 €
5 | 317.00 €
10 | 239.00 €
25 | 198.00 €
50 | 174.00 €

Details
Installation guide ACC530x.pdf (technical document available for this product)

Technical characteristics / specifications

• Model: ACC5302-2-SA-U
• Article number: 6626005
• Measurement type: static and dynamic acceleration
• Axes: 1-axis or 2-axis variants
• Output: voltage output
• Measurement range: ±2 g
• Housing: compact plastic housing
• Connection: AMP connector
• Shock resistance: high
• Designed for series integration and mobile machinery
