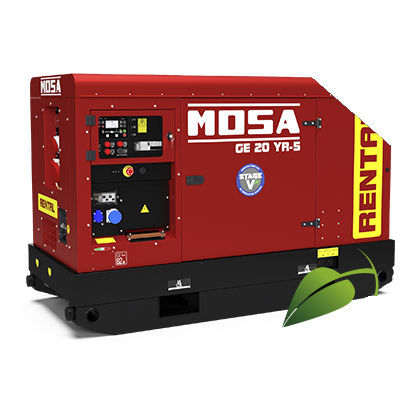

Diesel generator set GE 20 YR-5
three-phasestationary50 Hz

Diesel generator set - GE 20 YR-5 - MOSA - three-phase / stationary / 50 Hz
Diesel generator set - GE 20 YR-5 - MOSA - three-phase / stationary / 50 Hz
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Phase
three-phase
Portability
stationary
Frequency
50 Hz
Cooling system
water-cooled, air-cooled
Applications
industrial
Emissions level
Stage V
Power in kVA

18 kVA, 20 kVA
(24.47 hp, 27.19 hp)

Rated capacity

14.4 kW, 16 kW
(19.6 hp, 21.8 hp)

Voltage

400 V

Rotational speed

1,500 rpm
(9,425 rad.min-1)

Noise level

61 dB

Fuel tank capacity

100 l
(26.4 gal)

Length

1,936 mm
(76 in)

Width

950 mm
(37 in)

Height

1,329 mm
(52.32 in)

Weight

840 kg
(1,851.88 lb)

Description

Diesel generating set YANMAR 4TNV88-BIGE - Three-phase synchronous alternator - Water Cooled POWER RATINGS THREE-PHASE • Stand-By three-phase power: 20 kVA (16 kW) / 400V / 28,9A • PRP three-phase power: 18 kVA (14,4 kW) / 400V / 26A • Frequency: 50 Hz GENERAL SPECIFICATIONS • Fuel tank capacity: 100 lt. • Running time (75% to PRP): 29.5 h • Acoustic pressure: 61 dB(A) @ 7m • Dry Weight: 840 Kg • Dimensions (LxWxH): 1936x950x1329 mm
