Diesel generator set GE 10 YSXC
three-phasesingle-phasestationary

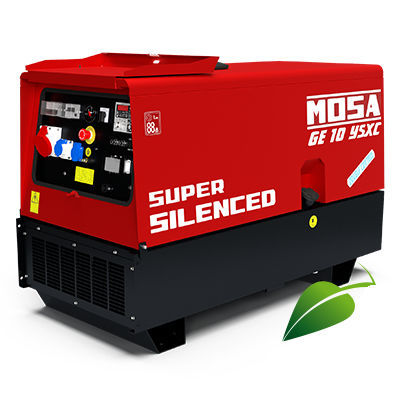

Diesel generator set - GE 10 YSXC - MOSA - three-phase / single-phase / stationary
Diesel generator set - GE 10 YSXC - MOSA - three-phase / single-phase / stationary
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Phase
three-phase, single-phase
Portability
stationary
Cooling system
water-cooled
Applications
industrial
Emissions level
Stage V
Power in kVA

4.5 kVA, 9 kVA, 9.5 kVA
(6.12 hp, 12.24 hp, 12.92 hp)

Rated capacity

7.2 kW, 7.6 kW
(9.8 hp, 10.3 hp)

Voltage

230 V

Rotational speed

1,500 rpm
(9,425 rad.min-1)

Noise level

62 dB, 87 dB

Fuel tank capacity

30 l
(7.9 gal)

Length

1,460 mm
(57 in)

Width

700 mm
(28 in)

Height

920 mm
(36.22 in)

Weight

410 kg
(903.9 lb)

Description

Generator Diesel YANMAR 3TNV80 - Three-phase synchronous alternator - Water Cooled POWER RATINGS • Stand-By three-phase power: 9.5 kVA (7.6 kW) / 400V / 13.7A • PRP three-phase power: 9 kVA (7.2 kW) /400V / 13A • PRP single-phase power: 4.5 kVA / 230V / 19.5A • Frequency: 50 Hz GENERAL SPECIFICATIONS • Fuel tank capacity: 30 lt. • Running time (75% to PRP): 15 h • Measured acoustic power LwA (pressure LpA): 87 dB(A) (62 dB(A) @ 7 m) • Guaranteed acoustic power LwA (pressure LpA): 88 dB(A) (63 dB(A) @ 7 m) • Dry Weight: 410 kg • Dimensions (LxWxH): 1460x700x920 mm
