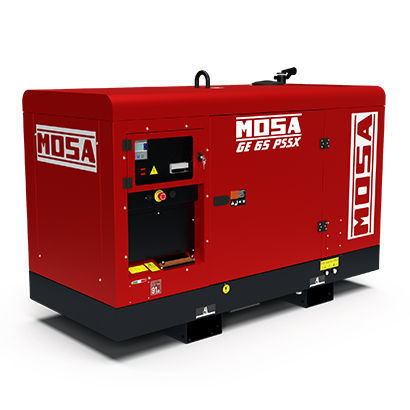

Diesel generator set GE 65 PS SX
three-phasesingle-phasestationary

Diesel generator set - GE 65 PS SX - MOSA - three-phase / single-phase / stationary
Diesel generator set - GE 65 PS SX - MOSA - three-phase / single-phase / stationary
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Phase
three-phase, single-phase
Portability
stationary
Frequency
50 Hz
Cooling system
water-cooled
Applications
industrial
Emissions level
Stage III
Power in kVA

22 kVA, 60 kVA, 66 kVA
(29.91 hp, 81.58 hp, 89.73 hp)

Rated capacity

48 kW, 52.8 kW
(65.3 hp, 71.8 hp)

Voltage

230 V, 400 V

Rotational speed

1,500 rpm
(9,425 rad.min-1)

Noise level

66 dB, 91 dB

Fuel tank capacity

100 l, 350 l
(26.4 gal, 92.5 gal)

Length

2,050 mm
(81 in)

Width

900 mm
(35 in)

Height

1,420 mm
(55.91 in)

Weight

1,200 kg
(2,645.55 lb)

Description

Supersilenced generating set - Perkins diesel engine (available also in compliance with Stage 3A) - Three-phase synchronous alternator - Water Cooled TECHNICAL FEATURES • Stand-by three-phase power: 66 kVA (52,8 kW) / 400V / 95.2A • PRP three-phase power: 60 kVA (48 kW) / 400V / 86.6A • PRP single-phase power: 22 kVA / 230V / 95.6A • Frequency: 50 Hz GENERAL SPECIFICATION • Tank capacity: 100 l (optional: 350 l) • Running time (75% of PRP): 9.5 h (8 h for the version with engine Stage 3A) • Measured acoustic power LwA (pressure LpA): 91 dB(A) (66 dB(A) @7m) • Guaranteed acoustic power LwA (pressure LpA): 92 dB(A) (67 dB(A) @7m) • Dry weight: 1200 kg • Dimensions (LxHxW): 2050 x 1420 x 900 mm
