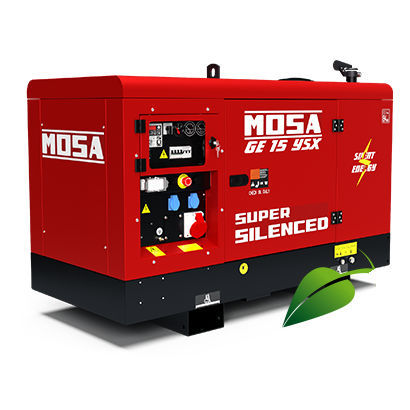

Diesel generator set GE 15 YSXthree-phasesingle-phasestationary
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- three-phase, single-phase
- Portability
- stationary
- Frequency
- 50 Hz
- Cooling system
- water-cooled
- Applications
- industrial
- Emissions level
- Stage V
- Power in kVA
6.5 kVA, 14 kVA, 15 kVA
(8.84 hp, 19.03 hp, 20.39 hp)- Rated capacity
11.2 kW, 12 kW
(15.2 hp, 16.3 hp)- Voltage
230 V, 400 V
- Rotational speed
1,500 rpm
(9,425 rad.min-1)- Noise level
60 dB, 85 dB
- Fuel tank capacity
55 l
(14.5 gal)- Length
1,680 mm
(66 in)- Width
770 mm
(30 in)- Height
1,187 mm
(46.73 in)- Weight
630 kg
(1,388.91 lb)
Description
Generator Diesel YANMAR 3TNV88 - Three-phase synchronous alternator - Water Cooled
POWER RATINGS
• Stand-By three-phase power: 15 kVA (12 kW) / 400V / 21.6 A
• PRP three-phase power: 14 kVA (11.2 kW) / 400V / 20.2 A
• PRP single-phase power: 6.5 kVA / 230V / 28.3A
• Frequency: 50 Hz
GENERAL SPECIFICATIONS
• Fuel tank capacity: 55 lt.
• Running time (75% to PRP): 21 h
• Measured acoustic power LwA (pressure LpA): 85 dB(A) (60 dB(A) @ 7m)
• Guaranteed acoustic power LwA (pressure LpA): 86 dB(A) (61 dB(A) @ 7m)
• Dry Weight: 630 kg
• Dimensions (LxWxH): 1680x770x1187 mm
