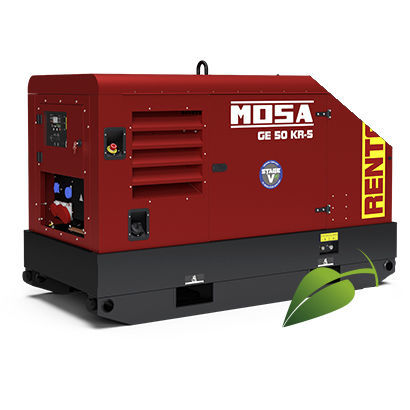

Diesel generator set GE 50 KR-5
three-phasestationary50 Hz

Diesel generator set - GE 50 KR-5 - MOSA - three-phase / stationary / 50 Hz
Diesel generator set - GE 50 KR-5 - MOSA - three-phase / stationary / 50 Hz
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Phase
three-phase
Portability
stationary
Frequency
50 Hz
Cooling system
water-cooled
Applications
industrial
Emissions level
Stage V
Power in kVA

45 kVA, 50 kVA
(61.18 hp, 67.98 hp)

Rated capacity

36 kW, 40 kW
(48.9 hp, 54.4 hp)

Voltage

400 V

Rotational speed

1,500 rpm
(9,425 rad.min-1)

Noise level

66 dB, 91 dB

Fuel tank capacity

245 l
(64.7 gal)

Length

2,401 mm
(95 in)

Width

1,100 mm
(43 in)

Height

1,575 mm
(62.01 in)

Weight

1,270 kg
(2,799.87 lb)

Description

Diesel generating set KOHLER KDI 2504TCR - Three-phase synchronous alternator - Water Cooled POWER RATINGS THREE-PHASE • Stand-By three-phase power: 50 kVA (40 kW) / 400V / 72.2A • PRP three-phase power: 45 kVA (36 kW) / 400V / 65A • Frequency: 50 Hz GENERAL SPECIFICATIONS • Fuel tank capacity: 245 lt. • Running time (75% to PRP): 29 h • Measured acoustic power LwA (pressure LpA): 90.7 dB(A) (65.7 dB(A) @ 7m) • Guaranteed acoustic power LwA (pressure LpA): 92 dB(A) (67 dB(A) @ 7m) • Dry Weight: 1270 Kg • Dimensions (LxWxH): 2401x1100x1575 mm
