Diesel generator set GE 40 YR-5
three-phasestationary50 Hz

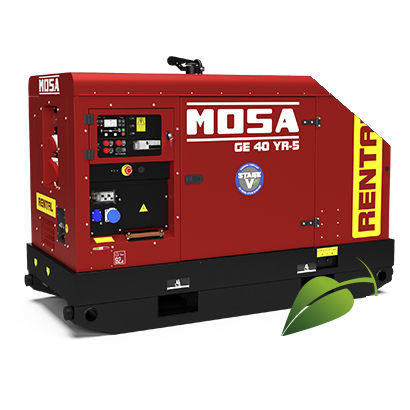

Diesel generator set - GE 40 YR-5 - MOSA - three-phase / stationary / 50 Hz
Diesel generator set - GE 40 YR-5 - MOSA - three-phase / stationary / 50 Hz
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Phase
three-phase
Portability
stationary
Frequency
50 Hz
Cooling system
water-cooled
Applications
industrial
Emissions level
Stage V
Power in kVA

34 kVA, 38 kVA
(46.23 hp, 51.67 hp)

Rated capacity

27.2 kW, 30.4 kW
(37 hp, 41.3 hp)

Voltage

400 V

Rotational speed

1,500 rpm
(9,425 rad.min-1)

Noise level

65 dB, 90 dB

Fuel tank capacity

150 l
(39.6 gal)

Length

2,151 mm
(85 in)

Width

950 mm
(37 in)

Height

1,478 mm
(58.19 in)

Weight

1,085 kg
(2,392.02 lb)

Description

Diesel generating set YANMAR 4TNV98C - Three-phase synchronous alternator - Water Cooled POWER RATINGS THREE-PHASE • Stand-By three-phase power: 38 kVA (30.4 kW)/ 400V / 54.8A • PRP three-phase power: 34 kVA (27.2 kW)/ 400V / 49A • Frequency: 50 Hz GENERAL SPECIFICATIONS • Fuel tank capacity: 150 lt. • Running time (75% to PRP): 25.5 h • Measured acoustic power LwA (pressure LpA): 90 dB(A) (65 dB(A) @ 7m) • Guaranteed acoustic power LwA (pressure LpA): 92 dB(A) (67 dB(A) @ 7m) • Dry Weight: 1085 Kg • Dimensions (LxWxH): 2151x950x1478 mm
