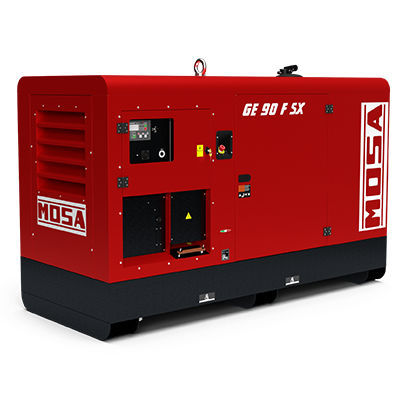

Diesel generator set GE 90 FSX

three-phasestationary50 Hz

Supersilenced generating set - FPT diesel engine (available also in compliance with Stage 3A) - Three-phase synchronous alternator - Three-phase power 83 kVA (66.4 kW) TECHNICAL FEATURES • Stand-by three-phase power: 90 kVA (72 kW) • PRP three-phase power: 83 kVA (66.4 kW) • Frequency: 50 Hz • Automatic voltage regulation “AVR” • Manual digital control panel • Four pole circuit breaker • Emergency stop button • Oil drain pump Bunded base suitable to contain any liquids leakage from engine avoiding environmental pollution • The rounded edges of the canopy designed for rainwater drainage away • Large doors for better and easy maintenance GENERAL SPECIFICATION • Tank capacity: 230 l (optional: 350 l) • Running time (75% of PRP): 16 h (15.5 h for the version with engine Stage 3A) • Measured acoustic power LwA (pressure LpA): 92 dB(A) (67 dB(A) @7m) • Guaranteed acoustic power LwA (pressure LpA): 94 dB(A) (69 dB(A) @7m) • Dry weight of machine: 1580 kg (1630 kg for the version with 350 l tank capacity) • Dimensions (LxHxW): 2630 x 1750 x 1130 mm
