Diesel generator set GE 150 FR-5
three-phasestationary50 Hz

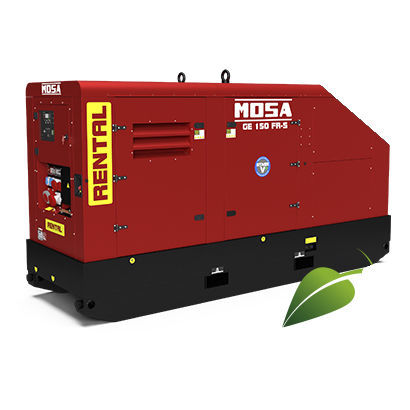

Diesel generator set - GE 150 FR-5 - MOSA - three-phase / stationary / 50 Hz
Diesel generator set - GE 150 FR-5 - MOSA - three-phase / stationary / 50 Hz
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Phase
three-phase
Portability
stationary
Frequency
50 Hz
Cooling system
water-cooled
Applications
industrial
Emissions level
Stage V
Power in kVA

120 kVA, 150 kVA, 165 kVA
(163.15 hp, 203.94 hp, 224.34 hp)

Rated capacity

96 kW, 120 kW, 132 kW
(130.5 hp, 163.2 hp, 179.5 hp)

Voltage

400 V

Rotational speed

1,500 rpm
(9,425 rad.min-1)

Noise level

67 dB

Fuel tank capacity

520 l
(137.4 gal)

Length

3,931 mm
(155 in)

Width

1,220 mm
(48 in)

Height

2,165 mm
(85.24 in)

Weight

2,820 kg
(6,217.04 lb)

Description

Diesel generating set FPT N67TEVP06.00 - Three-phase synchronous alternator - Water Cooled POWER RATINGS THREE-PHASE • Stand-By three-phase power: 165 kVA (132 kW) / 400V / 238,2A • PRP three-phase power: 150 kVA (120 kW) / 400V / 216,5A • COP power: 120 kVA (96 kW) / 400V / 173,2A • Frequency: 50 Hz GENERAL SPECIFICATIONS • Fuel tank capacity: 520 lt. • Running time (75% to PRP): 21,5 h • Acoustic pressure: 67 dB(A) @ 7m • Dry Weight: 2820 Kg • Dimensions (LxWxH): 3931x1220x2165 mm
