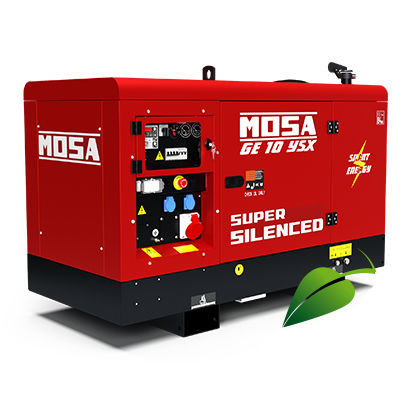

Diesel generator set GE 10 YSXthree-phasesingle-phasestationary
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- three-phase, single-phase
- Portability
- stationary
- Cooling system
- water-cooled
- Applications
- industrial
- Emissions level
- Stage V
- Power in kVA
4.5 kVA, 9 kVA, 9.5 kVA
(6.12 hp, 12.24 hp, 12.92 hp)- Rated capacity
7.2 kW, 7.6 kW
(9.8 hp, 10.3 hp)- Voltage
230 V
- Rotational speed
1,500 rpm
(9,425 rad.min-1)- Noise level
58 dB, 83 dB
- Fuel tank capacity
55 l
(14.5 gal)- Length
1,680 mm
(66 in)- Width
770 mm
(30 in)- Height
1,190 mm
(46.85 in)- Weight
535 kg
(1,179.47 lb)
Description
Generator Diesel YANMAR 3TNV80 - Three-phase synchronous alternator - Water Cooled
POWER RATINGS
• Stand-By three-phase power: 9.5 kVA (7.6 kW) / 400V / 13.7A
• PRP three-phase power: 9 kVA (7.2 kW) /400V / 13A
• PRP single-phase power: 4.5 kVA / 230V / 19.5A
• Frequency: 50 Hz
GENERAL SPECIFICATIONS
• Fuel tank capacity: 55 lt.
• Running time (75% to PRP): 27.5 h
• Measured acoustic power LwA (pressure LpA): 83 dB(A) (58 dB(A) @ 7m)
• Guaranteed acoustic power LwA (pressure LpA): 84 dB(A) (59 dB(A) @ 7m)
• Dry Weight: 535 kg
• Dimensions (LxWxH): 1680x770x1190 mm
