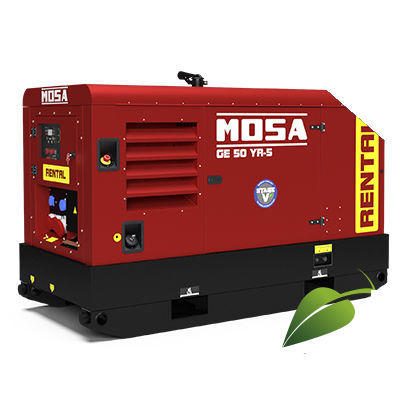

Diesel generator set GE 50 YR-5
three-phasestationary50 Hz

Diesel generator set - GE 50 YR-5 - MOSA - three-phase / stationary / 50 Hz
Diesel generator set - GE 50 YR-5 - MOSA - three-phase / stationary / 50 Hz
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Phase
three-phase
Portability
stationary
Frequency
50 Hz
Cooling system
water-cooled
Applications
industrial
Emissions level
Stage V
Power in kVA

44 kVA, 48 kVA
(59.82 hp, 65.26 hp)

Rated capacity

35.2 kW, 38.4 kW
(47.9 hp, 52.2 hp)

Voltage

400 V

Rotational speed

1,500 rpm
(9,425 rad.min-1)

Fuel tank capacity

245 l
(64.7 gal)

Length

2,401 mm
(95 in)

Width

1,100 mm
(43 in)

Height

1,575 mm
(62.01 in)

Weight

1,210 kg
(2,667.59 lb)

Description

Diesel generating set YANMAR 4TNV98CT - Three-phase synchronous alternator - Water Cooled POWER RATINGS THREE-PHASE • Stand-By three-phase power: 48 kVA (38.4 kW) / 400V / 69.3A • PRP three-phase power: 44 kVA (35.2 kW) / 400V / 63.5A • Frequency: 50 Hz GENERAL SPECIFICATIONS • Fuel tank capacity: 245 lt. • Running time (75% to PRP): 34 h • Measured acoustic power LwA (pressure LpA): 88 dB(A) (63 dB(A) @ 7m) • Guaranteed acoustic power LwA (pressure LpA): 90 dB(A) (65 dB(A) @ 7m) • Dry Weight: 1210 Kg • Dimensions (LxWxH): 2401x1100x1575 mm
