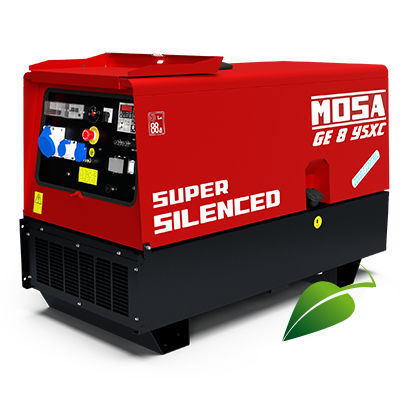

Diesel generator set GE 8 YSXC
single-phasestationary50 Hz

Diesel generator set - GE 8 YSXC - MOSA - single-phase / stationary / 50 Hz
Diesel generator set - GE 8 YSXC - MOSA - single-phase / stationary / 50 Hz
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Phase
single-phase
Portability
stationary
Frequency
50 Hz
Cooling system
water-cooled
Applications
industrial
Emissions level
Stage V
Power in kVA

7.5 kVA, 8 kVA
(10.2 hp, 10.88 hp)

Rated capacity

6.7 kW, 7.2 kW
(9.1 hp, 9.8 hp)

Voltage

230 V

Rotational speed

1,500 rpm
(9,425 rad.min-1)

Noise level

62 dB, 87 dB

Fuel tank capacity

30 l
(7.9 gal)

Length

1,460 mm
(57 in)

Width

700 mm
(28 in)

Height

920 mm
(36.22 in)

Weight

400 kg
(881.85 lb)

Description

Generator Diesel YANMAR 3TNV80 - Single-phase synchronous alternator - Water Cooled POWER RATINGS • Stand-By single-phase power: 8 kVA (7.2 kW)/ 230V / 34.8A • PRP single-phase power: 7.5 kVA(6.7 kW)/ 230V /32.6A • Frequency: 50 Hz GENERAL SPECIFICATIONS • Fuel tank capacity: 30 lt. • Running time (75% to PRP): 15 h • Measured acoustic power LwA (pressure LpA): 87 dB(A) (62 dB(A) @ 7 m) • Guaranteed acoustic power LwA (pressure LpA): 88 dB(A) (63 dB(A) @ 7 m) • Dry Weight: 400 kg • Dimensions (LxWxH): 1460x700x920 mm
