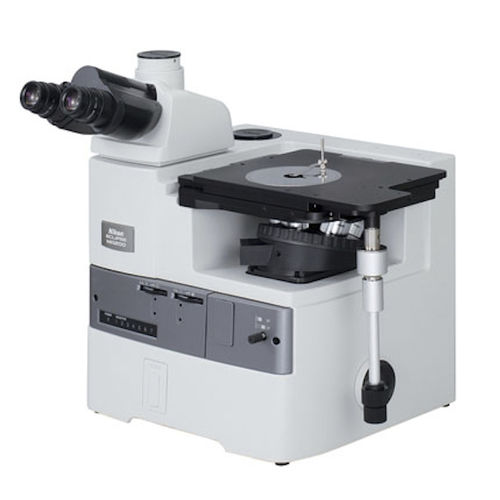

Metallographic microscope ECLIPSE MA200

for materials researchindustrialfor production lines

Product overview
The ECLIPSE MA200 LED is an inverted metallurgical microscope designed for episcopic optical-contrast inspection combined with digital imaging accessories. It is intended for materials R&D, production inspection and metallurgical quality control in industrial environments, supporting a wide range of sample sizes including resin-mounted cross sections and large components.

Ergonomic design concept
Front-mounted operator controls and a variable-angle eyepiece tube enable fatigue‑reduced operation. The stage accepts multiple aperture plates and a variety of holders; optical sliders support grain sizing and linear measurements. Controls and maintenance access are arranged for efficient laboratory and production workflows.

Grain size and cast iron modules
When used with NIS-Elements software, the system performs grain size analysis compliant with standards (JIS G0551, ASTM E112-13, E1382-97, ISO 643, GB/T 6394). Cast iron analysis detects, measures and classifies graphite according to JIS G5502, ASTM A247-06 and ISO945-1. Results integrate with image capture and measurement routines for traceable reporting.

Key features

• Digital Sight compatibility: Integrates with Digital Sight cameras and NIS-Elements for high-definition capture, measurement and analysis.
• Nikon CFI60 / CFI60-2 optics: Objectives with chromatic aberration correction for accurate imaging.
• Modular accessories: Manual/ motorized nosepieces, selectable LED lamphouses (C-LL-I), stages and polarizing options to match observation methods.

Included / selectable functions and modules

• Observation techniques: Brightfield, Darkfield, Simple Polarizing, DIC.
• Optical system compatibility: CFI60 / CFI60-2.
• Imaging & software: Designed to integrate with Nikon Digital Sight cameras and NIS-Elements for capture, measurement and analysis (grain size, cast iron, etc.).

Technical specifications (excerpt)

• Model: ECLIPSE MA200 LED
• Focusing mechanism: Focusing nosepiece (fixed stage). Coaxial coarse/fine adjustment knob with adjustable torque; coarse 4.0 mm/rotation, fine 0.1 mm/rotation.
• Illumination: C-LL-I LED lamphouse with flare prevention and built-in UV cut filter. Field and aperture diaphragms dial-continuous and centerable. Polarizing block selectable (with/without 1/4 plate).
• Light distribution: Eyepiece tube / back port: 100/0 or 55/45.
• Optics: CFI60 / CFI60-2 system.
• Observation methods: Brightfield / Darkfield / Simple Polarizing / DIC.
• Resolving nosepieces: MA-N7-I, LV-NU5IN, LV-NU5A (motorized option).
• Stage: MA2-SR mechanical stage (X/Y flexible handle). Dimension: 295 × 215 mm. Stroke: 50 × 50 mm.
• Trinocular eyepiece: Seidentopf, interpupillary distance adjustment 50–75 mm.
• Power input: 100–240 V, 50–60 Hz. Power consumption: 1.2 A / 75 W.
• Weight: Approx. 25 kg (depends on configuration).
• Options: Intermediate magnification turret (1×, 1.5×, 2×) with status detection; reticles: MA2-GR grain reticle, grid reticle (20 lines, 0.5 mm), MA2-MR scale reticle (5–100×, µm readout).
