Digital camera Digital Sight 100

industriallaboratoryfor microscopes

Overview

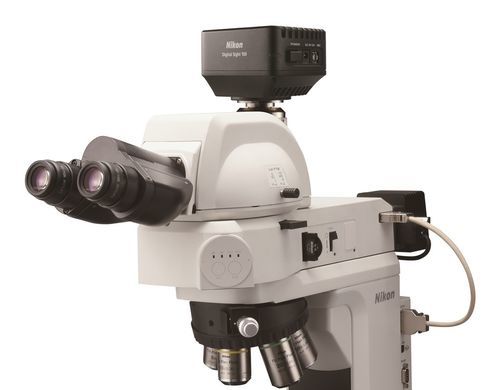

The Digital Sight 100 is a colour camera engineered for industrial microscopy applications. It delivers high-definition imaging with accurate colour reproduction for inspection, documentation and collaborative workflows, and supports both FN16 operation (6.5 MP) and a standalone wide-field FN25 option (up to 17.7 MP).

Key features

• High-definition capture: 6.5 MP (2944 x 2208) at FN16 for clear recording of fine structural detail and rich colour information.
• Image sensor: 1‑inch colour CMOS image sensor; standalone/FN25 supports up to 4864 x 3648 (17.7 MP).
• Maximum frame rate: Up to 60 fps (1600 x 900) for smooth live display.
• Optical compatibility: C‑mount lens interface for integration with industrial and laboratory microscope optics.
• Interfaces & connectivity: USB 3.2 Device (Gen2x1), USB 3.2 Host (Gen1x1), HDMI 1.4b, MSC communication; support for Ethernet and Wi‑Fi (Wi‑Fi via external dongles).
• Software compatibility: Compatible with Nikon NIS‑Elements LE and integrates with NIS‑Elements AR/BR/D for capture and analysis workflows.
• Low power consumption and compact form factor: 7 W (camera only); compact camera body for easy installation.

Technical table (key entries)
Image sensor: 1‑inch colour CMOS image sensor
Recordable pixels @ FN16: 2944 x 2208 (6.5 MP)
Standalone / FN25 wide-field: up to 4864 x 3648 (17.7 MP)
Maximum frame rate @ FN16: 60 fps (1600 x 900)
Lens mount: C‑mount
Interface: USBPort1 (Device): USB 3.2 Gen2x1 (USB2.0 not supported); USBPort2 (Host): USB 3.2 Gen1x1; HDMI 1.4b; MSC communication; Wi‑Fi (via external dongles); Ethernet
Power supply: AC 100–240 V 50/60 Hz
Power consumption: 7 W (camera only)
Dimensions (camera body): 120 (W) x 74 (D) x 75 (H) mm
Weight: Approx. 600 g

Notes
Remote capture via Wi‑Fi is supported when used with a PC running NIS‑Elements LE; Wi‑Fi requires external Wi‑Fi dongles (sold separately) and compliance depends on local regulations.
