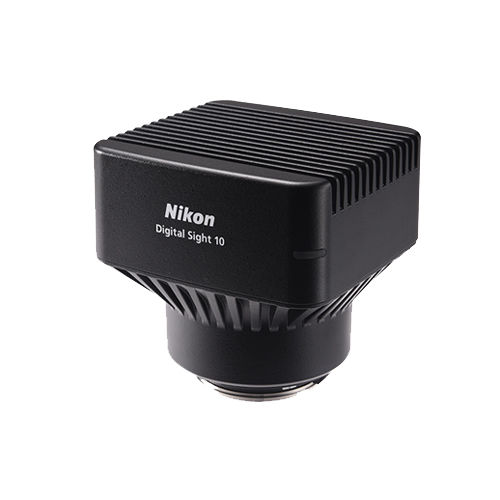

Digital camera Digital Sight 10

for microscopesscientific visionnear-infrared

Overview
The Digital Sight 10 is a microscope camera designed for high-resolution imaging and fast live observation. It integrates a Nikon FX full-frame 23.9 megapixel CMOS sensor to capture 6K images and supports both colour and monochrome workflows without compromise.

Product Highlights

• Full-frame Nikon FX CMOS sensor (35.8 × 23.8 mm) offering up to 6000 × 3984 pixels (23.9 MP) at high image fidelity.
• 6K high-resolution capture for detailed sample analysis and measurement.
• Compact camera body with approximately 30% reduced volume for easier integration into microscope systems.
• High sensitivity and low noise with selectable equivalent ISO 200–12800; recommended ISO 200 (colour) and ISO 800 (monochrome); near-infrared acquisition capable.
• Fast live display modes: full-pixel 6000 × 3984 up to 9 fps; 3×3 pixel averaging 2000 × 1328 up to 55 fps for smoother live observation.

Core Features

• Single camera supports both colour and monochrome capture with motorised or manual switching—avoids swapping cameras or filters during experiments.
• Nikon-adopted FX-format sensor optimised for microscopy to deliver accurate colour reproduction and fine structural detail.
• High-speed data transfer and storage via USB3.2 Gen1/Gen2 interface and external sync I/O for system integration.
• Exposure range 100 μs to 120 s to cover both fast dynamic and long-exposure imaging tasks.

Technical Specifications
Image sensor: Nikon FX-format color/monochrome CMOS / Size: 35.8 × 23.8 mm
Recordable pixels: 6000 × 3984 (23.9 MP)
Live display modes: Full-pixel 6000 × 3984 (max 9 fps) / 3×3 averaging 2000 × 1328 (max 55 fps)
ISO sensitivity (recommended exposure index): Colour mode: equivalent to ISO 200; Monochrome mode: equivalent to ISO 800 (selectable ISO200–ISO12800 equivalent)
Lens mount: F-mount
Exposure time: 100 μs to 120 s
Interface: USB3.2 Gen1/Gen2 (computer control) ×1; External sync input/output ×1
Power supply: AC100–240 V 50/60 Hz
Power consumption: 18 W
Dimensions (W×D×H): 113 × 108 × 110 mm
Weight: 1.1 kg
Operating environment: 0–40 °C, max 60% RH (no condensation)
