Optical stereo microscope SMZ800N

for quality controlfor the automotive industryfor semiconductors

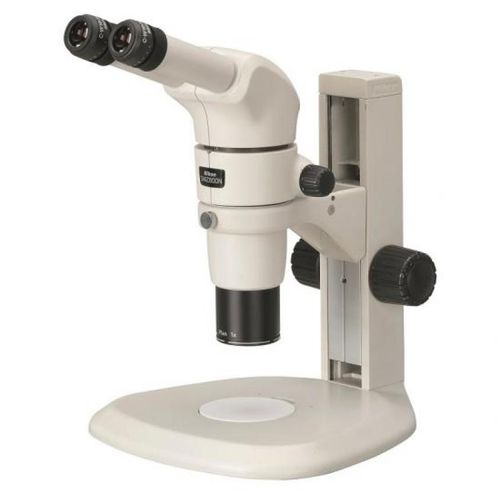

Overview The SMZ800N is a stereomicroscope with an 8:1 optical zoom (1×–8×) designed for industrial inspection, failure analysis and materials research. It provides high-resolution images across the zoom range and supports desktop use or machine integration.

Applications

• Failure analysis and root-cause investigation of electronic components
• Surface inspection, crack and corrosion detection
• Quality assurance for aerospace, automotive, electronics and construction parts
• Materials, composites and textile inspection

Product highlights

• 8:1 optical zoom delivering wide magnification coverage and large field of view (1–8×)
• Consistent image sharpness with minimal chromatic aberration using Plan Apo WF and ED Plan WF objectives
• Large field of view at low magnification and reliable high-magnification performance for QA and integration
• Compatibility with Nikon Digital Sight cameras and a wide range of incident/transmitted illumination and stands
• Ergonomic design with variable-angle observation tubes and operator-oriented controls

Core features

• Double-objective changer nosepiece enabling observation over an extended magnification range without moving the sample; on-axis vertical view for plan imaging of holes or pin structures
• Eight available objectives (Plan Apo 0.5×/WF; Plan Apo 0.75×/WF; Plan Apo 1×/WF; ED Plan 1.5×/WF; ED Plan 2×/WF; Plan 1×; ED Plan 0.75×; Achro 0.5×) for flexible depth of focus and long working distances
• Various eyepieces (C-W10×B, C-W15×, C-W20×, C-W30×) and tube options (binocular, trinocular, tilting trinocular)
• Extensive accessory support for cameras, illumination and stands

Specifications Optical system: Parallel-optics type (zooming type)
Zoom ratio: 8:1
Zoom range: 1–8× (stops at 1/2/3/4/6/8×)
Total magnification: 5–480× (depending on eyepiece and objectives); with coaxial episcopic illuminator: 22.5–540×
Tubes: Eyepiece inclination: 20° (P-B binocular) / 15° (P-TL100 trinocular) / 0°–30° (P-TERG100 / P-TERG50 tilting trinocular)
Eyepieces: C-W10×B (F.N. 22), C-W15× (F.N. 16), C-W20× (F.N. 12.5), C-W30× (F.N. 7)
Objectives: Plan Apo 0.5×/WF; Plan Apo 0.75×/WF; Plan Apo 1×/WF; ED Plan 1.5×/WF; ED Plan 2×/WF; Plan 1×; ED Plan 0.75×; Achro 0.5×
Working distance: 78 mm (with Plan 1×)
Weight (approx.): 6.8 kg (with P-B binocular tube + C-PSN plain stand)

Technical specifications

• Model: SMZ800N
• Optical system: Parallel-optics (zooming type)
• Zoom ratio: 8:1
• Zoom range: 1–8×
• Total magnification example: 5–480× (dependent on eyepiece/objective)
• Working distance example: 78 mm (with Plan 1×)
• Approx. weight: 6.8 kg (typical configuration)
