Optical stereo microscope SMZ745

inspectionfor materials researchindustrial

Overview

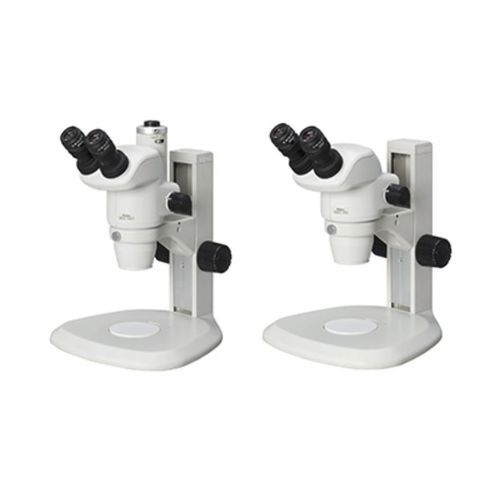

The SMZ745T (trinocular) and SMZ745 stereo microscopes provide a 7.5:1 optical zoom ratio and a standard working distance of 115 mm. They are intended for materials research and production-line industrial inspection, enabling both stereo visual inspection and digital imaging (SMZ745T).

Applications

• Failure analysis and verification of failure modes
• Component surface inspection, crack detection and corrosion studies
• Inspection of composite materials and textiles
• Examination of machined parts for aerospace, construction and other industrial applications

Optical heads and imaging
SMZ745T: trinocular head with an integrated camera port (0.55x C‑mount) compatible with 2/3 in. or smaller CCD for digital imaging while retaining stereo viewing. SMZ745: binocular head offering the same optical performance and working distance. Both are compatible with a range of eyepieces and auxiliary objectives to adjust magnification and working distance.

Key features

• 7.5:1 optical zoom ratio for continuous magnification selection
• Standard 115 mm working distance (before using auxiliary objectives)
• Greenough optical system for stereoscopic observation
• Robust functional design with special surface treatments
• Air-tight body joints (SMZ745) to reduce internal contamination
• ESD protective coating to reduce electrostatic risk to samples
• Anti-mold internal coating for humid environments
• Five auxiliary objectives available to extend magnification and working-distance options

Technical specifications

• Optical system: Greenough optical system
• Total magnification: 3.35–300x (depends on eyepiece and auxiliary objective)
• Zoom ratio: 7.5:1 (approx.)
• Zoom range: 0.67–5x
• Vertical tube / camera port: Built-in 0.55x C‑mount (F.N. 11), compatible with 2/3 in. or smaller CCD
• Eyepiece tube: Fixed type
• Eyepiece inclination: 45°
• Interpupillary distance adjustment: 52–75 mm
• Eyepieces (with diopter adjustment): C‑W 10xB (F.N. 22), C‑W 15x (F.N. 16), C‑W 20x (F.N. 12.5), C‑W 30x (F.N. 7)
• Auxiliary objectives available: G‑AL 0.5x (W.D. 211 mm), G‑AL 0.7x (W.D. 150 mm), G‑AL 1.5x (W.D. 61 mm), G‑AL 2x (W.D. 43.5 mm)
• Working distance: 115 mm (standard, before any supplementary lens)
• Environmental protections: ESD coating, anti-mold internal coating, air-tight body joints (SMZ745)
