Overview
Airveyor provides clean, efficient and low-maintenance conveying of large volumes of paper-based waste (paper, corrugated and solid board) using a shallow horizontal air track driven by a high-efficiency centrifugal fan. With no belts or moving parts on the bed, the system minimises jams and mechanical failures while enabling compact installations and retrofit into existing production lines.

Key features

• Shallow horizontal air track transports waste along the conveyor length on an air cushion.
• High-efficiency centrifugal fan supplies air beneath the track for uniform air-cushion distribution.
• No belts, rollers or moving bed parts — reduces jamming, tracking adjustments and routine maintenance.
• Operators can safely walk on the air track during operation for access to production machinery.
• Flexible installation: trench-mounted under machinery or mounted on rollers at ground level.
• Ducting quick-release fittings for fast access and simplified maintenance.
• Fans can be remote-mounted to save space at the installation point.
• Compact design suited to restricted spaces and short convey distances; optimised for retrofit into printing and converting equipment.
• Typical applications: printer/slotter lines, die-cutting/creasing machines and general paper-based waste handling.

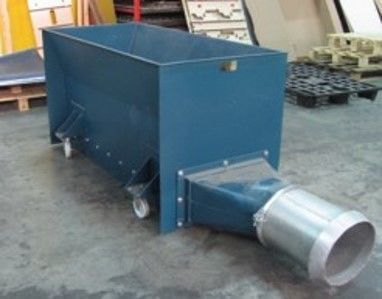

• Available in fixed and mobile configurations (e.g. Mobile Airveyor quick-release connection, Mobile Airveyor fan feed, Fixed Airveyor).

Benefits

• Reliable continuous operation with fewer mechanical failure points and reduced downtime.
• Lower maintenance costs and simpler servicing compared with conventional belt conveyors.
• Compact footprint suitable for space-constrained production environments and retrofit projects.
• Improved housekeeping and dust control when integrated with ducting and downstream extraction or filtration systems.

Technical specifications

• Conveying principle: air-cushion via shallow horizontal air track.
• Drive: high-efficiency centrifugal fan (option for remote mounting).
• Materials handled: paper, corrugated board, solid board and similar waste products.
• Installation options: trench-mounted or ground-level on rollers.
• Access: operators may walk on the air track during normal operation.
• Maintenance: minimal — no belts/rollers on track; quick-release ducting for rapid access.
• Variants: fixed and mobile Airveyor configurations.
• Ideal for: short convey distances and restricted spaces; tailored for printer/slotter and die-cut/creasing machinery environments.
