Overview

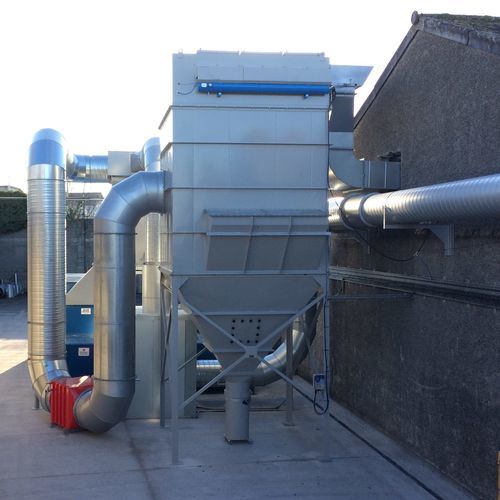

Paramount CA Reverse Jet Filter units are engineered to provide high-quality air cleaning for continuous, non-stop industrial operations. They are specifically designed to handle large volumes of air contaminated with fibrous and fine dust where reliable, uninterrupted performance is required.

Performance and Media Options
These units perform effectively in environments that generate static charges on dust particles. Paramount supplies epitropic anti-static media as the standard filter medium. Additional media options are available to suit specific particulate types, including:

• Oil-coated dusts
• Plastics
• Minerals

Control and Efficiency
The units use solid-state control to trigger pulse cleaning on demand rather than on a fixed schedule. This demand-based cleaning reduces compressed air and electricity consumption, improving operating cost efficiency.

Dust Collection and Continuous Operation
Collected dust is discharged from the base of the unit through a butterfly valve into heavy-duty plastic sacks or a steel bin. This arrangement enables straightforward disposal without stopping plant processes, supporting true continuous operation and reduced downtime.

Safety and Compliance
Paramount CA Reverse Jet Filter units address explosion risks associated with fibrous and fine combustible dusts (for example, paper and board dust classified as “Class A”). The systems are designed and manufactured in accordance with ATEX and CE directives. Key safety features include:

• Explosion relief panels (can be fitted to any side of the unit and angled upwards to reduce required clear area)
• Non-return valves to control blow-back pressure in the event of an explosion

Optional proprietary spark and flame detection and extinguishing systems can be supplied for enhanced protection.

Applications
CA Reverse Jet Filter units are suitable for numerous industries and processes that generate fibrous and fine dusts. Paramount can supply single or small multiple bag systems for specialist applications as well as versions for various fume removal requirements.

Specifications

• Product type: CA Reverse Jet Filter units (series designed for continuous, non-stop operations)
• Standard filter media: epitropic anti-static media
• Additional media options: for oil-coated dusts, plastics, minerals
• Cleaning control: solid-state (demand-based pulse cleaning)
• Dust discharge: butterfly valve to heavy-duty sacks or steel bin
• Explosion protection: ATEX and CE compliant; explosion relief panels angled upwards
• Pressure safety: non-return valves to control blow back
• Optional safety: spark and flame detection and extinguishing systems
• Available configurations: single or small multiple bag systems; fume removal variants
