Bulk material Venturi ejector Venturi

solidsfor recyclingportable

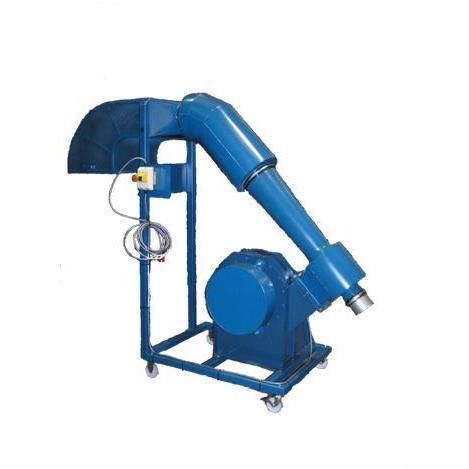

Product overview The Paramount Venturi (also referred to as an eductor) uses fluid dynamics to generate a high-velocity airstream that conveys continuous trim and small die-cut waste to a collection point without a chopping fan. It is suited to applications where dust generation is undesirable or where conveyed materials present an explosion risk. Venturi units are supplied as standalone mini-systems or integrated modules to supplement existing waste-management installations, adding air volume and pressure at specific points depending on the overall system capacity. By avoiding chopping, the Venturi system minimises contamination of recycled material and allows discharge directly into a metal cage, reducing the need for downstream separation equipment.

Benefits

• No moving parts: enhances reliability and reduces maintenance requirements.
• Easy to install: straightforward design enables quick deployment.
• Compact and portable: suitable for varied industrial locations and easily relocatable.
• No contamination of waste product: avoids chopping so recycled material remains cleaner and retains value.
• Less dust: eliminates dust generation associated with chopping, improving workplace cleanliness and safety.
• Handles a wide range of waste: effective with continuous trim and small die-cut materials.
• Reduced noise: design lowers operational noise compared with chopping systems.

Operational notes The unit conveys waste by entrainment in a high-velocity airflow. When used to augment an existing installation, selection and configuration should consider the capacity of the host system. Typical discharge arrangements permit dumping directly into open metal cages, removing the requirement for downstream chopping or separation and reducing maintenance on moving parts.

Caractéristiques / spécifications techniques

• Principle: Venturi/eductor conveying using a high-velocity airstream.
• Moving parts: None (no chopping mechanism).
• Installation: Compact, portable; suitable as standalone mini-systems or integrated modules.
• Material handling: Continuous trim and small die-cut waste; suited where dust or explosion risk is a concern.
• Discharge: Direct discharge into metal cages possible (no chopping/separation required).
• Performance role: Adds air volume and pressure at points in a waste system, subject to overall system support.
• Maintenance: Low maintenance due to absence of moving parts; reduced wear.
