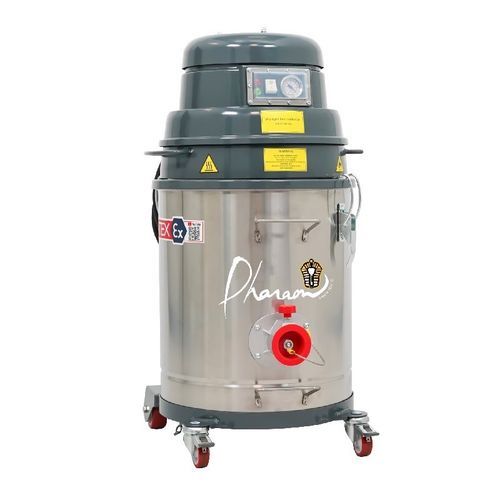

Industrial vacuum cleaner MTL 301 1/2D

drycombustible dusthazardous dust

Summary
Compact vacuum for hazardous combustible dust in ATEX zones. Supplied complete with a full cleaning accessory kit.

Description
The MTL 301 1/2D from Pharaon is designed for extraction of combustible dusts in environments with a moderate explosion risk. Its compact, mobile design simplifies cleaning and maintenance operations even in demanding industrial settings.

The unit features two filtration stages: an antistatic primary filter class M and an absolute HEPA H14 filter providing filtration efficiency up to 99.995 %. This combination helps maintain a clean and safe workplace while meeting strict safety standards.

The MTL 301 1/2D is driven by a by-pass motor engineered for non-continuous applications, ensuring extended service life and reliable performance. The innovative motor head is protected by a safety shroud to preserve the motor and reduce explosion risk while optimizing suction.

The vacuum has a stainless steel AISI 304 tank and a wheeled chassis for easy mobility. It is simple to service and includes an integrated evacuometer to monitor filter clogging and allow easy filter replacement.

Accessories supplied

• Cleaning accessory kit TA.0527.0000

Characteristics / technical specifications

• Model: MTL 301 1/2D
• Brand: Pharaon
• Application type: Combustible dusts
• Vacuum family: Industrial
• Max vacuum (mmH2O): 2250
• Max airflow (m3/h): 215
• Capacity (L): 40
• Sound level (dB): 74
• Filter area (cm²): 4000
• Voltage (V): 230
• Power (W): 2200
• Primary filter: ANT M (antistatic primary filter class M)
• Absolute filtration: HEPA H14 (standard), declared efficiency up to 99.995 %
• Motorization: by-pass motor (designed for non-continuous applications)
• Tank: stainless steel AISI 304
• Mobility: wheeled chassis
• Clogging monitoring: integrated evacuometer
• ATEX dust certification: mentioned for zone 20 indoor and zone 21 outdoor in the description; the page also contains a mention « zone 20 indoor, zone 22 outdoor » in the information boxes (see page notices)
