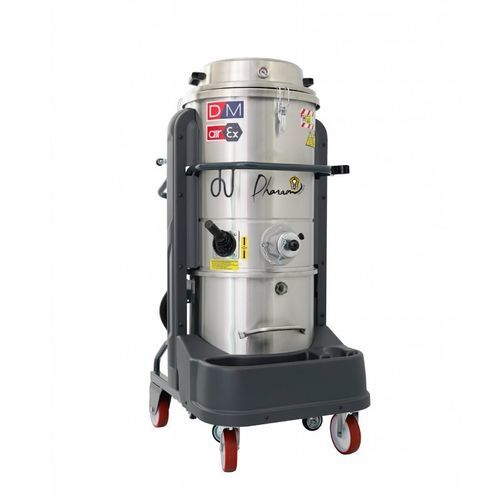

Industrial vacuum cleaner DM AIREX 19V 1/2D - 2/2G

drydustcompressed air

Summary
The DM AIREX 19V 1/2D - 2/2G is an ATEX compressed-air industrial vacuum without any electric motor, designed for explosive-risk areas (zone 20 indoor / zone 21 outdoor). It features a 100 L AISI 304 stainless steel container on casters, M-class antistatic polyester pocket primary filtration and optional HEPA H14 absolute filtration.

Operation and safety

• Operated by compressed air using a multi-nozzle Venturi system (no electrical components, no sparks).
• ATEX certified: zone 20 (internal) / zone 21 (external), category 1/2D – 2/2G IIC.

Construction and handling

• AISI 304 stainless steel construction for mechanical and chemical resistance and easy cleaning (suitable for pharmaceutical, food, chemical, aerospace sectors).
• 100 L mobile container mounted on casters with quick-release for safe emptying.

Filtration

• Primary filter: antistatic polyester pocket bags, M class, filtration area 30,000 cm², Ø 500 mm (retains fine dust down to 1 µm).
• Optional HEPA H14 absolute filter, 26,000 cm², 99.995% efficiency at 0.18 µm (MPPS).
• Manual de-dusting system to maintain performance and limit dust dispersion.

Operational benefits

• Industrial-grade, compact design ready for site use.
• No electrical supply required: maximum safety in ATEX zones.
• Compact, mobile and low maintenance.

Recommended applications

• Food, pharmaceutical, chemical, aerospace industries and other environments requiring strict hygiene and safety.

Characteristics / technical specifications

• Commercial name: DM AIREX 19V 1/2D - 2/2G
• Dimensions: 62 x 62 x 160 h (units indicated on product sheet)
• Max vacuum (mmH₂O): 5000
• Max flow (m3/h): 465
• Capacity: 100 L
• Noise level: 74 dB
• Filtration area: 30,000 cm²
• Primary filter: antistatic polyester pocket filter (M class), Ø 500 mm
• HEPA H14 absolute filtration: optional (26,000 cm², 99.995% @ 0.18 μm MPPS)
• De-dusting system: manual
• Weight: 80 kg
• Vacuum family: Industrial
• ATEX zone: 20 indoor / 21 outdoor
• Air inlet: 80 mm
• Construction: AISI 304 stainless steel
• Suction system: multi-nozzle Venturi (compressed air)
