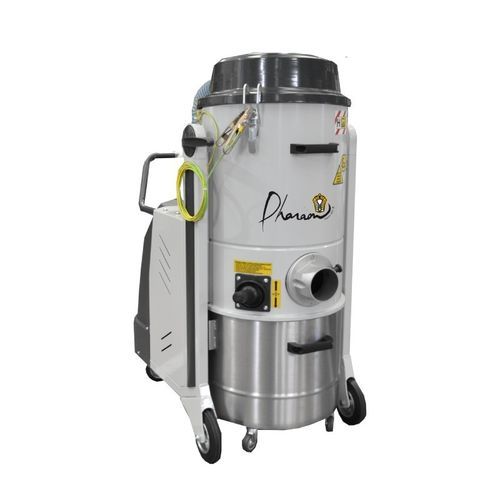

Industrial vacuum cleaner MTL3533 EX1/2D

dryfine dustdust

Overview
The MTL3533 EX1/2D is a three-phase industrial vacuum certified ATEX zones 21 and 22 (category 1/2D) designed for the collection of fine and potentially explosive dusts. Robust 45 L AISI 304 stainless steel tank and reinforced steel chassis, side-channel blower directly coupled to the motor, quiet operation suitable for continuous 24/7 service. Fast and safe emptying via a 45-litre stainless tank on wheels and equipotential bonding for grounding compliant with ATEX requirements.

Main features

• Compact, powerful three-phase industrial vacuum
• Side-channel blower directly coupled to the motor (no transmission)
• ATEX 1/2D certification for zones 21 and 22 (dust applications)
• 45 L AISI 304 stainless steel tank on wheels
• Primary ANT M polyester antistatic pocket filter — filtration area 20,000 cm² (IEC 60335-2-69 compliant)
• Absolute HEPA H14 filter 27,100 cm² — 99.995% retention (MPPS)
• Vacuum gauge for filter status monitoring and clogging detection
• Manual de-clogging system with handle to avoid dust dispersion during cleaning
• Integrated safety valve for additional air intake and motor protection/cooling
• Air inlet Ø 80 mm

Performance & use

• High achievable vacuum suitable for fine/explosive dusts
• Airflow adapted to pharmaceutical, food, aerospace and heavy industry applications
• Designed for intensive continuous operation (24/7)
• Maneuverable on different floor types thanks to wheels and compact design

Filtration and safety

• Primary filter ANT M (antistatic polyester pockets) — 20,000 cm²
• Absolute HEPA H14 filter (27,100 cm²) — filtration efficiency 99.995% (MPPS)
• Manual de-clogging system to maintain performance without dispersing dust
• Design and equipment compliant with ATEX requirements for zones 21/22
• Equipotential bonding for ATEX-compliant grounding

Typical applications

• Pharmaceutical industry
• Food processing
• Aerospace
• Heavy industry and workshops handling hazardous dusts

Technical specifications

• Dimensions: 93 x 58 x 116 cm
• Max vacuum (mmH2O): 2600
• Max airflow (m3/h): 320
• Capacity (L): 45
• Noise level (dB): 69
• Filtration area (cm²): 20000
• Voltage (V): 400
• Power (W): 4000
• Primary filter: ANT M
• De-clogging system: Manual
• Absolute filtration HEPA H14: Standard (27,100 cm², 99.995% MPPS)
• Weight (kg): 85
• Tank: AISI 304 stainless steel
