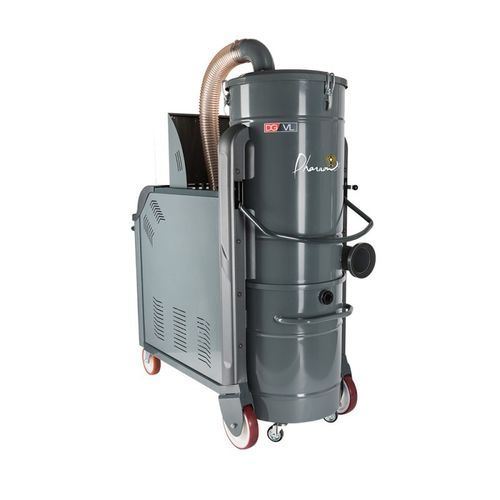

Industrial vacuum cleaner DGVL75 EX1/2D

dryhazardous dustdust

Summary
ATEX-certified three-phase industrial dust vacuum DGVL75 EX1/2D for industrial environments and heavy-duty materials handling.

Overview
The DGVL75 EX1/2D is a high-performance three-phase industrial vacuum engineered for ATEX zones 21 and 20 with category 1/2D certification. Designed for direct use in potentially explosive atmospheres, including inside tanks, it is suitable for demanding sectors such as food processing, pharmaceuticals, aerospace and precision machining.

Main operating features

• 7.5 kW side-channel blower directly coupled to the motor (no transmission) for low-noise, maintenance-free operation.
• Integrated safety valve providing additional cooling airflow to the motor.
• Maximum vacuum 2,700 mmH₂O and air flow 700 m³/h for high suction capacity and handling of large volumes of dust and fine residues.
• 120 mm inlet diameter for optimal passage of materials.
• 160 L AISI 304 stainless steel collection tank mounted on casters for rapid and hygienic emptying.
• Tangential inlet with integrated cyclone for pre-separation of dust by cyclonic effect.

Filtration and de-clogging system

• Primary antistatic polyester pocket filter, class M, filtration area 70,000 cm².
• Absolute HEPA H14 filter with 52,000 cm² surface, 99.995% efficiency for particles down to 0.18 µm.
• ATEX-certified semi-automatic de-clogging system using a pneumatic cylinder to shake the filter (vertical movement); programmable cleaning cycles to maintain suction performance and reduce downtime.

Construction and mobility
Epoxy-painted steel chassis, robust and maneuverable, fitted with industrial-grade wheels to ensure excellent mobility across various surfaces. Built for intensive continuous use with ergonomics and durability adapted to demanding industrial environments.

Applications

• Food processing
• Pharmaceutical
• Aerospace
• Precision machining

Specifications / technical data

• Model: DGVL75 EX1/2D
• Blower: 7.5 kW side-channel blower, motor directly coupled
• Max vacuum (mmH₂O): 2700
• Max flow (m3/h): 700
• Capacity (L): 160
• Filtration area (cm²): 70,000 (pocket filter); HEPA H14 52,000 cm²
• HEPA H14 efficiency: 99.995% down to 0.18 µm
• Sound level (dB): 72
• Weight (kg): 200
• Dimensions (LxWxH cm): 180 x 77 x 200
• Air inlet (mm): 120
• Tank: AISI 304 stainless steel, wheeled emptying
• De-clogging system: ATEX-certified semi-automatic, pneumatic cylinder
• Pre-separation: tangential inlet with integrated cyclone
• Chassis: epoxy-painted steel, industrial wheels
