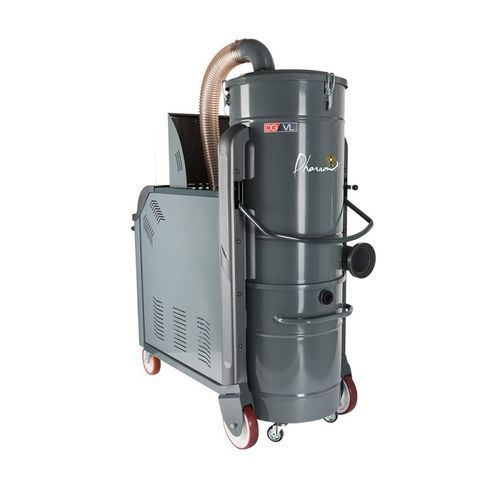

Industrial vacuum cleaner DGVL185 EX1/2D

drydustcombustible dust

Summary
A three-phase industrial dust vacuum DGVL185 EX1/2D, ATEX-certified for combustible dusts. Designed to operate safely in ATEX zones 21 and 20, suitable for sensitive industrial environments (pharmaceutical, food processing, aerospace, precision mechanical applications). Continuous, secure operation with thermal protection and safety valve.

Key benefits

• Certified for ATEX zones 21 and 20 (classification 1/2D) — can be used even inside collection tanks when required.
• Vacuum unit: 18.5 kW side-channel blower directly coupled to the motor, no transmission — continuous stable suction with minimal mechanical maintenance.
• Thermal protection via PTC probe and safety valve for automatic temperature regulation.
• Tangential inlet with integrated cyclonic separator for pre-separation and reduced main filter loading.
• 160 L AISI 304 stainless steel tank on castors for easy, low-contact emptying.
• Advanced filtration: antistatic polyester pocket filter class M (large filtration area) combined with absolute HEPA H14 for extremely clean exhaust air.
• Semi-automatic filter cleaning system, ATEX-certified, using a pneumatic ram for vertical impulses (programmable or user-triggered blowdown).
• Reinforced chassis and industrial-grade castors for on-site mobility and durability.

Technical summary (extracts)

• Vacuum unit: 18.5 kW side-channel blower.
• Maximum vacuum: 2 600 mmH₂O.
• Maximum airflow: 1 350 m³/h.
• Air inlet: 120 mm.
• Tank: AISI 304 stainless steel, 160 L, on castors.
• Primary filtration: antistatic polyester pocket filter, class M — filtration area 70 000 cm².
• Secondary filtration: HEPA H14 absolute filter — indicated area 103 500 cm² — 99.995% efficiency down to 0.18 µm.
• Cleaning system: semi-automatic ATEX-certified, pneumatic ram for vertical impulses; programmable or user-triggered operation.
• Inlet separation: tangential inlet with integrated cyclonic separator to reduce main filter clogging.
• Dimensions reported: 180 x 77 x 200 h (cm).
• Tank capacity: 160 L.
• Sound level: 78 dB.
• Weight shown in datasheet: 200 kg.

Specifications / technical data

• Model: DGVL185 EX1/2D
• ATEX certification: 1/2D — zones 21 & 20
• Blower power: 18.5 kW
• Max vacuum: 2 600 mmH₂O
• Max airflow: 1 350 m³/h
• Air inlet: 120 mm
• Tank: AISI 304 stainless steel — 160 L
• Pocket filter: antistatic polyester, class M — area 70 000 cm²
• Absolute filter: HEPA H14 — indicated area 103 500 cm² — 99.995% efficiency down to 0.18 µm
• Cleaning system: semi-automatic, pneumatic ram, ATEX-certified
• Separator: tangential inlet with integrated cyclonic separator
• Sound level: 78 dB
• Dimensions: 180 x 77 x 200 h (cm)
• Tank capacity: 160 L
• Weight: 200 kg (value shown in technical data)
