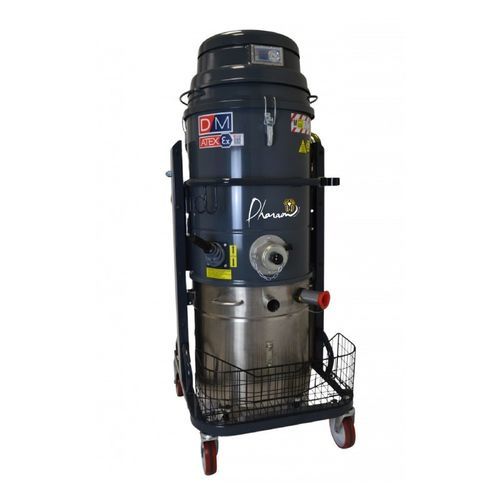

Industrial vacuum cleaner DM2 1/2D INERT

dryhazardous dustoil mist

Presentation
The DM2 1/2D INERT is a single-phase ATEX industrial vacuum designed for safe collection of combustible and flammable dusts in ATEX classified areas 20 (indoor) and 21 (outdoor). Equipped with an inerting system using a neutralizing oil bath, a category M primary filter and an absolute HEPA H14 filter, it neutralizes and captures hazardous fine particles while complying with EN 17348.

Detailed description
The unit features a single-phase by-pass motor of 2.3 kW providing a maximum vacuum of 2 500 mmH2O and an airflow of 360 m3/h. The motor head is certified IP64 for enhanced protection against dust ingress. The tank is made of AISI 304 stainless steel with a total capacity of 44 litres (37 litres dedicated to the inerting liquid). The chassis is epoxy-painted steel and the assembly is mounted on industrial wheels for mobility and stability.

Inerting system and safety

• Neutralizing oil-bath inerting system to render aspirated particles inert.
• Removable deflector tube and overpressure valve for safety in case of abnormal pressure rise.
• AISI 304 stainless-steel basket and PPL filter for oil mist.
• Reusable neutralizing oil.

Filtration

• Antistatic polyester pocket primary filter category M (filter surface 30,000 cm², Ø 500 mm) compliant with IEC 60335-2-69.
• Absolute HEPA H14 filter 26,000 cm², retention efficiency 99.995% for particles down to 0.18 μm (MPPS method).
• Integrated vacuum gauge for real-time monitoring of filter condition.
• Manual filter cleaning system.

Use and compliance
Designed for environments handling high-risk metal, chemical or pharmaceutical powders, the DM2 1/2D INERT meets ATEX requirements and the EN 17348 standard, providing a compact solution for safe extraction of flammable and hazardous dusts.

Characteristics / technical specifications

• Model: DM2 1/2D INERT
• Dimensions (cm): 77 x 66 x 168
• Max vacuum (mmH2O): 2500
• Max airflow (m3/h): 360
• Capacity (L): 44 (37 L for inerting liquid)
• Sound level (dB): 74
• Filter surface (cm²): 30000
• Voltage (V): 230
• Power (W): 2300
• Primary filter: Antistatic polyester pocket filter (category M)
• Absolute filtration: HEPA H14 (standard), 26,000 cm², 99.995% at 0.18 μm (MPPS)
• Cleaning system: Manual
• Air inlet (mm): 50
• Vacuum family: Industrial
• Certification: ATEX zones 20/21 (1/2D)
