Industrial vacuum cleaner 452 AIREX 14V 1/2D

dryhazardous dustdust

Overview

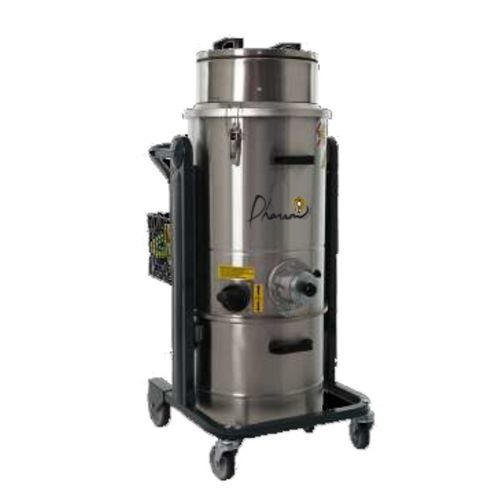

The 452 AIREX 14V 1/2D is an ATEX-certified industrial vacuum for gases and dusts (gas zones 1/2 and dust zones 21/22) compliant with UNI EN 17348:2022. Powered solely by compressed air (no electric motor), it uses a multi-nozzle venturi system encapsulated in a metal head. Air consumption: 1 458 nl/min at 6 bar. Vacuum developed: 3 700 mmH2O. Nominal airflow: 300 m³/h. Sound level: 68 dB(A).

Technology and filtration
Two-stage complementary filtration:

• Primary filter: antistatic polyester pocket filter category M, PTFE-coated to reduce clogging and improve durability.
• Absolute filter: HEPA H14, declared surface in product text ~20 600 cm², capable of retaining 99.995% of particles down to 0.18 μm.

Filter cleaning is performed by a manual handle de-clogging system to limit dust re-suspension.

Construction and handling
45 L stainless tank (without trolley), mounted on casters and easily detachable for quick, clean emptying. Compact, reinforced structure designed for manipulation in confined or mobile zones. Format adapted to sensitive areas.

Applications
Designed for high-risk environments where flammable gases and combustible dusts coexist: chemical plants, blasting areas, marine environments, workshops with strict safety constraints, etc. Mobile solution for professionals working in explosive atmospheres.

Main features / technical specifications

• Model: 452 AIREX 14V 1/2D
• ATEX certification: gas zones 1/2 and dust zones 21/22 (dual gas and dust certification)
• Power supply: compressed air (no electric motor)
• Air consumption: 1 458 nl/min at 6 bar
• Max vacuum: 3 700 mmH2O
• Max airflow: 300 m³/h
• Tank capacity: 45 L (stainless, without trolley)
• Filter surface (declared in datasheets): ~20 600 cm² (mentioned in description) / 20 000 cm² (value shown in table)
• Absolute filter: HEPA H14, retention 99.995% down to 0.18 μm
• Primary filter: antistatic polyester pocket, category M, PTFE coating
• De-clogging system: manual handle
• Sound level: 68 dB(A)
• Air inlet: 80 mm
• Dimensions: 70 x 55 x 127 h (cm)
• Weight: values found on page - product meta: 46 kg; technical datasheet displays: 50 (units indicated on the page)
• Typical applications: chemical industry, blasting, marine, ATEX workshops
