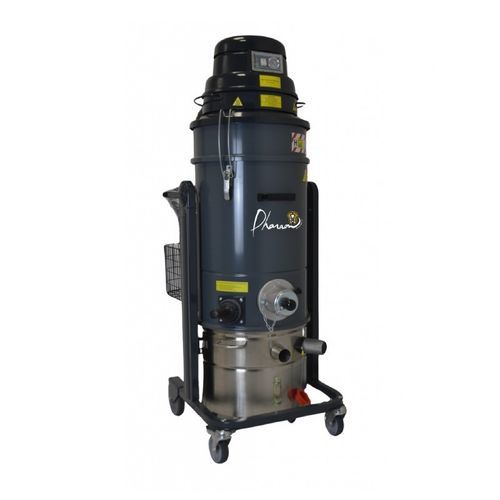

Industrial vacuum cleaner MTL451 1/2D INERT

dryhazardous dustcombustible dust

Overview
The MTL451 1/2D INERT is a single-phase industrial vacuum certified ATEX (zone 20 internal and 21 external) for safe collection of combustible, reactive and flammable dusts. It features an oil-bath neutralising inerting system compliant with EN 17348, primary M-class filtration and an H14 HEPA cartridge to protect against hazardous fine dust.

Main features

• Detachable container for easy emptying
• M-class primary filtration + HEPA H14 cartridge for fine dust protection
• Brushless motor (reduced maintenance, extended service life)
• Oil-bath neutralising inerting system

Detailed description
The MTL451 1/2D INERT is equipped with a 1.1 kW brushless motor delivering consistent performance with low maintenance. It provides a maximum vacuum of 2 250 mmH₂O and an air flow of 215 m³/h, suitable for fine dust extraction. Filtration comprises a 20,000 cm² antistatic polyester pocket primary filter (M class) and an 11,000 cm² HEPA H14 cartridge (99.995% efficiency down to 0.18 µm by MPPS). An integrated vacuometer monitors filter condition and a manual handle de-dusting system eases maintenance.

Inerting and filtration components

• Removable deflector tube
• PPL filter for oil mist
• AISI 304 stainless steel basket
• Three supplementary fibre filters
• Neutralising oil reusable several times

Mobility and construction
Compact and mobile unit (dims 61 x 66 x 133 cm, weight 52 kg) mounted on a robust steel chassis with detachable AISI 304 stainless steel container to facilitate handling and emptying.

Usage and applications
Designed for sectors handling metal, chemical or pharmaceutical powders and environments requiring safe management of combustible or flammable dusts.

Technical specifications

• Commercial name: MTL451 1/2D INERT
• Type: Single-phase industrial vacuum
• ATEX certification: zone 20 internal and 21 external
• Inerting system: Oil-bath neutralising (EN 17348 compliant)
• Motor: Brushless, 1.1 kW (1100 W)
• Voltage: 230 V
• Max vacuum: 2 250 mmH₂O
• Max flow: 215 m³/h
• Tank capacity: 15 L
• Noise level: 74 dB
• Filtration area: 20 000 cm² (antistatic polyester pocket primary filter, M class)
• HEPA cartridge: H14, 11 000 cm² (99.995% down to 0.18 µm by MPPS)
• De-dusting system: Manual (handle)
• Air inlet: 50 mm
• Weight: 52 kg
• Dimensions (L x W x H): 61 x 66 x 133 cm
• Tank: Detachable AISI 304 stainless steel
• Basket: AISI 304 stainless steel
• Additional filters: PPL filter for oil mist and 3 fibre filters
• Control elements: Integrated vacuometer
• Vacuum family: Industrial
