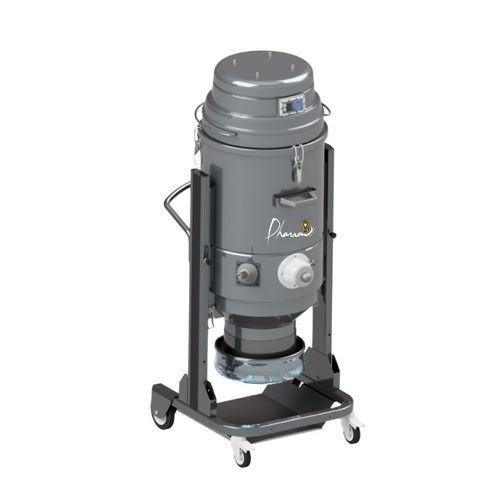

Industrial vacuum cleaner DM2EL 1/2D LP

drydustfor asbestos

Overview
The DM2EL 1/2D LP is a single-phase industrial vacuum cleaner certified ATEX 1/2D, designed for use in zone 20 (indoor) and 21 (outdoor). It provides a secure, high-performance and hygienic solution for the collection of combustible, flammable or hazardous dusts while minimizing operator exposure and handling.

Key functional features
This model is equipped with a brushless motor ensuring extended service life, reduced maintenance and no carbon particle emissions. It integrates the Longopac bagging system to collect dust into a sealed tubular bag without direct operator contact (approx. 20 m bag capacity — ~50 uses). The robust chassis on industrial wheels ensures stability and easy manoeuvring even on uneven floors.

Filtration and safety

• Two complementary filtration levels :
• • Primary filter: antistatic polyester bag, effective surface 30,000 cm², category M (captures standard work dust and prevents electrostatic buildup).
  • Absolute filter: HEPA H14, surface 26,000 cm², guaranteed efficiency 99.995% at 0.18 µm (retains invisible pollutants).
• Manual filter shaker by handle (allows filter cleaning without opening the unit and without dispersing dust into the ambient air).
• Integrated vacuum gauge to indicate filter clogging level.

Typical applications
Asbestos removal works, interventions in confined spaces, construction sites or workshops requiring controlled dust handling (construction, pharmaceutical industry, food processing, maintenance on classified sites, etc.).

Operational benefits

• Maximum hygiene and no direct contact with dust thanks to Longopac.
• Reduced maintenance (brushless motor, accessible chassis, simple filter shaking system).
• Compact, well-balanced design for integration in service vehicles or mobile storage.

Performance notes (values shown on product page)
The product shows technical values published on the page: motor power and suction performance (see technical specifications block for numeric details). Some values may appear differently between sections of the sheet (e.g. vacuum and airflow reported both in the general description and the technical table); users should refer to the official technical datasheet or supplied documentation for final confirmation.

Technical characteristics / specifications

• Model: DM2EL 1/2D LP
• Certification: ATEX 1/2D (suitable for zones 20 indoor and 21 outdoor)
• Drive: brushless motor (no carbon brushes)
• Power: 2.2 kW (mentioned in the description) — power listed in technical block: 2300 W
• Vacuum: 2,250 mmH₂O (value mentioned in text) — technical block: Max vacuum 2,500 mmH₂O
• Airflow: 430 m³/h (value indicated in presentation) — technical block: Max airflow 360 m³/h
• Primary filter: antistatic polyester bag, surface 30,000 cm², category M
• Absolute filter: HEPA H14, surface 26,000 cm², efficiency 99.995% at 0.18 µm
• Total filter surface indicated: 30,000 cm²
• Bagging system: Longopac (tubular sealed bag, capacity ~20 m ≈ 50 uses)
• Filter cleaning system: manual by handle
• Noise level: 74 dB (technical block)
• Voltage: 230 V
• Electrical power listed in technical block: 2300 W
• Weight: values shown on the page: 72 kg (technical block) and 79 kg (product meta) — verify according to configuration
• Collection capacity: Longopac (tubular system, no fixed container)
• Family: Industrial vacuum cleaner
