Industrial vacuum cleaner DM AIREX 25V 1/2D - 2/2G

dryhazardous dustdust

Summary

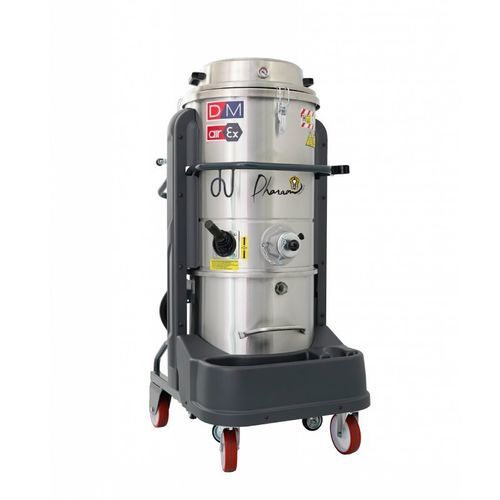

The DM AIREX 25V 1/2D - 2/2G is a compressed-air ATEX industrial vacuum designed for capture of hazardous dust in Zone 20 (indoor) and Zone 21 (outdoor). High-flow, mobile and built for demanding environments (food, chemical, pharmaceutical).

Main features

• Robust industrial design
• Compressed-air operation, no electrical supply required (multi-nozzle Venturi principle)
• Compact industrial structure, ready for all job sites
• 100 L AISI 304 stainless-steel tank on casters for quick emptying

Detailed description
The DM AIREX 25V 1/2D - 2/2G is an ATEX-certified compressed-air industrial vacuum (Zone 20 indoor / Zone 21 outdoor), engineered for maximum safety in explosive-risk environments. Its multi-nozzle Venturi system powered by compressed air eliminates the need for electricity, preventing spark risks and ensuring safe operation in the presence of combustible dust or flammable gases (category 1/2D – 2/2G IIC). The AISI 304 stainless-steel construction provides corrosion resistance and easy cleaning. The 100 L tank on casters offers large collection capacity and safe emptying.

Filtration comprises an antistatic polyester pocket primary filter (M class, filtration surface 30,000 cm², Ø 500 mm) for fine dust retention, complemented by an absolute HEPA H14 filter (26,000 cm²) capturing 99.995% of particles down to 0.18 μm. A manual de-clogging system preserves performance, and an integrated vacuum gauge allows real-time monitoring of filter condition.

Performance data listed on the product sheet: the sheet contains performance indications with values mentioned in two places: Maximum vacuum (stated as 5 000 mmH₂O in the technical sheet and 6 000 mmH₂O in the description) and Airflow (stated as 590 m³/h in the technical sheet and 600 m³/h in the description).

Typical applications

• Agriculture / food industry
• Chemical and pharmaceutical plants
• Sites with combustible dust or ATEX atmospheres

Technical specifications

• Model: DM AIREX 25V 1/2D - 2/2G
• Construction: AISI 304 stainless steel
• Tank: 100 L (on casters)
• Primary filter: antistatic polyester pocket filter, filtration surface 30,000 cm², Ø 500 mm (M class)
• Absolute filtration: HEPA H14 (option / mentioned on data sheet) — 26,000 cm², efficiency 99.995% at 0.18 μm
• De-clogging system: manual
• Integrated vacuum gauge: yes (filter condition monitoring)
• Maximum vacuum: 5 000 mmH₂O (alternative mention 6 000 mmH₂O in a section of the sheet)
• Max airflow: 590 m³/h (alternative mention 600 m³/h in a section of the sheet)
• Sound level: 74 dB
• Filtration surface: 30,000 cm²
• Air inlet: 80 mm
• Weight: 80 kg
• Dimensions (L x W x H): 62 x 62 x 160 cm
• Vacuum family: Industrial
• ATEX zone: 20 indoor / 21 outdoor
