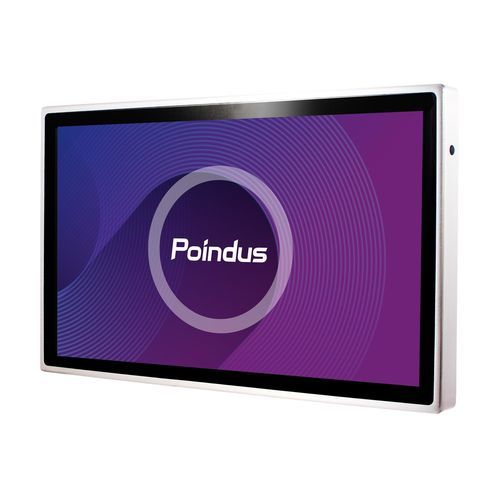

Stainless steel frame panel PC SPPC-215

multitouch screenPCAP capacitive touch screen21.5"

Product Overview
Industrial Panel PC Solution designed to thrive in harsh environments. The SPPC-215 is a robust and reliable stainless steel panel PC with a responsive 21.5″ multi-touch display and powerful Intel® processing options, designed for demanding industrial applications where durability and performance are critical. With its sealed full stainless steel chassis, front IP65 protection, and covered I/O interface with splash-resistant cable passthrough, the SPPC-215 is built for continuous operations in industrial and harsh commercial settings.

Main Features

• Rugged 21.5″ Panel PC
• Stainless Steel Design (SUS 304)
• Intel® 12th Gen Inside: Intel® Elkhart Lake Celeron, Intel® Alder Lake i3, Intel® Alder Lake i5
• Intel F/W TPM
• 10 points PCAP multi-touch support
• Full System IP65, Fanless System & VESA Compliance
• WIFI / BT module / Peripherals (Project based)
• Stainless Steel Robust Chassis

Performance & Architecture

• Intel® Core™ CPU (12th Gen Intel CPU options)
• Fan-less Architecture for silent running and prolonged lifespan
• Stainless Steel IP65 Front for rugged steel chassis with ingress protection
• Multiple Mount Options: Wall, Pole & Stand Mount Configurations (VESA 100 x 100)

Display & Touch

• 21.5″ Full HD display (1920 x 1080, 16:9)
• Projected Capacitive Technology, 10 point Multi-touch
• 250cd/m² brightness

Enclosure & Protection

• Crafted with SUS 304 stainless steel for exceptional strength and corrosion resistance
• Advanced Ingress Protection for reliable performance in harsh environments
• Sealed full stainless steel chassis, front IP65 protection
• Covered I/O interface with splash-resistant cable passthrough

Connectivity & I/O

• Rich I/O with USB/COM ports and covered, protected cable-management
• 1 x Gigabit Ethernet by RJ-45
• USB Ports: 3 x USB 3.1, 3 x USB 2.0 (PE24); 2 x USB 3.0 (PE17); 4 x USB 3.1, 2 x USB 2.0 (PE22)
• 2 x RJ-48 COM Ports (Support DC+0/5/12V by BIOS, default is 0V)
• 1 x RJ11 Cash Drawer (Support DC+12V or 24V, default, supports 2 cash drawers)
• 1 x Type C
• 1 x power on/off button
• 1 x MiniDin 4P (DC +19v only)

Expansion & Storage

• 1 x M.2 M Key (storage)
• 1 x M.2 A,E Key (for WiFi/BT project based)
• 1 x SATA III (2.5″) (PE17)
• mini-pcie (PE17)

System Memory

• PE24: 1 x SO-DIMM DDR4 slot, 8GB RAM as standard, Max. support up to 16GB
• PE26: 1 x 8GB DDR5 SO-DIMM memory, Max. support up to 32GB
• PE17/PE22: 1 x SO-DIMM DDR4 slot, 8GB RAM as standard, Max. support up to 16GB

Processor Options

• PE24: Intel® Celeron
• PE26: Core i5, Core i3
• PE17: Intel® Kaby Lake i5, Intel® Sky Lake i3, Intel® Sky Lake Celeron®
• PE22: Intel® Core™ i5 Processor, Intel® Core™ i3 Processor, Intel® Celeron® Processor

Operating System Support

• Windows 10
• Linux

Power Adapter

• PE24: Input:100 ~ 240Vac/ 50 ~ 60Hz Output: 65W Adapter (19V Adapter) AC-DC Adapter
• PE26: Input:100 ~ 240Vac/ 50 ~ 60Hz Output: 90W Adapter (19V Adapter) AC-DC Adapter
• PE17/PE22: Input:100 ~ 240Vac/ 50 ~ 60Hz Output: 90W Adapter (19V Adapter) AC-DC Adapter

Compliance & Certifications

• CE / FCC Class B (PE24/PE26)
• CE / FCC / LVD (PE17/PE22)

Protection

• Full System IP65

Mounting Options

• Desktop Stand, Wall, Pole (VESA 100 x 100)

Environmental Conditions

• Operating: 0°C ~ 40°C (32°F ~ 104°F)
• Storage: -10°C ~ 60°C (14°F ~ 140°F)
• Operating Humidity: 0% ~ 90% Relative Humidity, Non-condensing

Physical

• Weight (NW/GW): 8.0 Kgs / 10.1 Kgs
• Dimensions: 526.6 x 323.2 x 52.9mm

Additional Highlights

• Fanless design delivers silent performance, lowers failure rates & downtime
• Industrial-grade CPU performance for stable, reliable continuous operation
• Excellent 21.5″ screen size and readability
• Low TCO driven by long service life, low maintenance, and high uptime
• WiFi/BT Connectivity with external antennas and M.2 A,E Key expansion slot
• Digital I/O for industrial applications
• Smart cable management with ingress protected I/O interface

Technical Specifications (Summary)

• Model: SPPC-215 | PE24 / PE26 / PE17 / PE22
• Processor: Intel® Celeron, Core i3, Core i5, Kaby Lake, Sky Lake (varies by main board)
• Memory: Up to 32GB DDR5 or 16GB DDR4 (varies by main board)
• Display: 21.5″ Full HD 1920 x 1080, 250cd/m², Projected Capacitive 10-point Multi-touch
• Storage: M.2 M Key, SATA III (2.5″) (PE17), mini-pcie (PE17)
• Expansion: M.2 A,E Key (WiFi/BT), mini-pcie (PE17)
• I/O: 1 x Gigabit Ethernet, up to 4 x USB 3.1, up to 3 x USB 2.0, 2 x RJ-48 COM, 1 x RJ11 Cash Drawer, 1 x Type C, 1 x MiniDin 4P (DC +19v only)
• OS: Windows 10, Linux
• Certifications: CE / FCC / LVD
• Protection: Full System IP65
• Mounting: Desktop Stand, Wall, Pole (VESA 100 x 100)
• Operating Temp: 0°C ~ 40°C
• Storage Temp: -10°C ~ 60°C
• Humidity: 0% ~ 90% RH, non-condensing
• Weight: 8.0 Kgs / 10.1 Kgs
• Dimensions: 526.6 x 323.2 x 52.9mm
